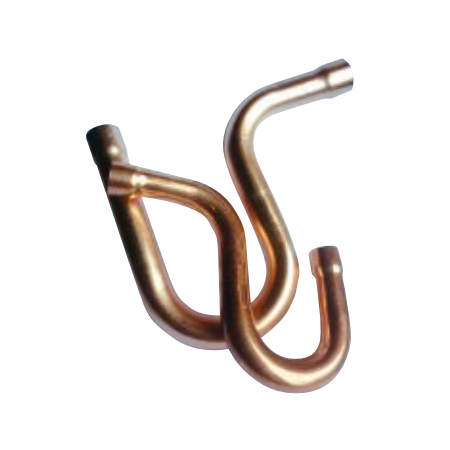

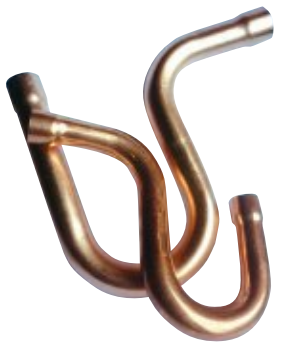

Copper P-Trap Fitting 2 1/8 ID | R-410A Compatible | ISO9001 Certified | by Aspen Pumps
The Copper P-Trap Fitting 2 1/8 ID is designed for HVAC and refrigeration systems, ensuring compatibility with R-410A and HP-60 refrigerants. Manufactured under ISO9001 standards, it exceeds ISO/AS 5149.2 requirements, providing reliable performance and reducing refrigerant leakage risk. Ideal for high-pressure applications, this fitting is perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper P-Trap Fitting 2 1/8 ID | R-410A Compatible | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 107-34
Alternatively Known As: Copper P-Trap Fitting, SKY Copper Fitting, R-410A Copper Fitting, High Pressure Copper Fitting
Technical Specifications
- Compatible with R-410A and HP-60 refrigerants
- Exceeds ISO/AS 5149.2 standards
- Manufactured under ISO9001 quality management system
- Passed batch verification and burst testing
- Recommended 15% silver solder for brazing in high-pressure applications
- Designed to minimize mechanical and thermal stress
- Dimensions (H x L x W): 54mm x 54mm x 54mm
- Weight: 0.2 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- CE and UL certified
- Manufactured in an ISO9001 accredited facility
- Batch verification and burst testing for quality assurance
- Marked for R-410A and HP-60 refrigerant safety
- Designed to reduce stress and fatigue points in fittings
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology; use 15% silver solder for brazing in high-pressure systems.
Applications
- HVAC systems requiring reliable copper fittings
- Refrigeration systems using R-410A and HP-60 refrigerants
- High-pressure copper pipe installations
Standards & Compliance
- Complies with AS/NZS 5149.2 for refrigeration systems safety and performance
Environmental Benefits
- Reduces refrigerant leakage risk, minimizing environmental impact
- Manufactured to high standards to ensure long service life and reduce waste
Warranty Information
Warranty details available upon request; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps SKY Copper P-Trap Fitting 2 1/8 ID is available for immediate purchase, ideal for HVAC and refrigeration system installations.
