Trade Discount 22%

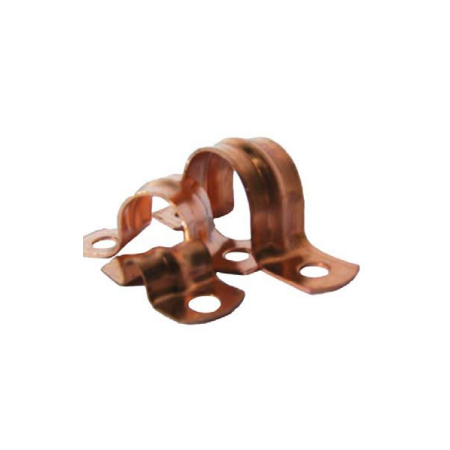

Copper Pipe Saddle 1 2 Dia Exceeds ISO AS 5149.2 Standards CE & UL Certified Aspen Pumps
The Copper Pipe Saddle 1 2 Dia is designed for HVAC refrigeration systems, exceeding ISO AS 5149.2 standards for reliability and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper Pipe Saddle 1/2 inch, Refrigeration Copper Fitting, HVAC Copper Saddle
Technical Specifications
- Exceeds ISO/AS 5149.2 standards for refrigeration fittings
- CE and UL certified
- Manufactured in ISO9001 accredited facility
- Burst tested post-brazing for reliability
- Recommended 15% silver solder for brazing in high pressure applications
- Suitable for R-410A and HP-60 refrigerants
- Dimensions (H x L x W): 20mm x 50mm x 50mm
- Weight: 0.1 kg
Key Features
- Designed, manufactured and tested to exceed ISO/AS 5149.2 standards
- Manufactured in an ISO9001 accredited facility with stringent QA controls
- Burst tested after brazing to simulate real field application conditions
- Marked for R-410A and HP-60 compatibility for safety
- Designed to remove stress and fatigue focus points to reduce failure risk
Professional Installation Requirements
- Installation must be performed by suitably qualified tradespeople following AS HB40 methodology, using recommended brazing techniques and materials.
Applications
- HVAC refrigeration systems requiring reliable copper pipe connections
- High pressure refrigerant piping installations
- Commercial and residential refrigeration and air conditioning systems
Standards & Compliance
- AS/NZS 5149.2 ??? Refrigeration systems and heat pumps ??? Safety and environmental requirements
Environmental Benefits
- Reduces refrigerant leakage risk, minimizing environmental impact
- Manufactured to high standards ensuring long service life and less waste
Warranty Information
Backed by Aspen Pumps' standard warranty covering manufacturing defects and performance reliability.
Available Now
The Aspen Pumps SKY Copper Pipe Saddle 1/2 Dia is available for immediate purchase, ideal for HVAC and refrigeration system installations requiring high reliability and safety.
