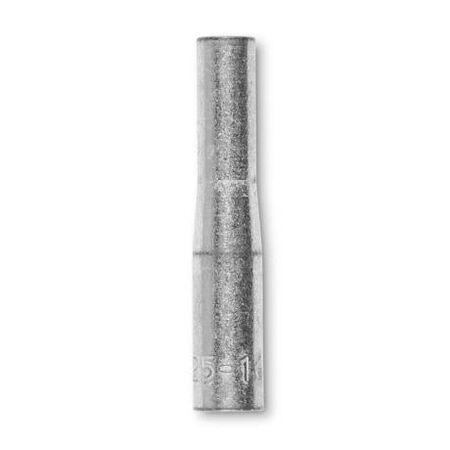

Copper Reducing Crimp Link 25-6sqmm Non-Insulated Wattmaster
Wattmaster copper reducing crimp link 25-6sqmm for in-line cable jointing. High conductivity, electrolytic-grade copper.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electrolytic grade copper
- Plating: Electro-tin plated for corrosion resistance
- Conductor Size Range: Reduces from 25mm² to 6mm²
- Operating Temperature: -55°C to +155°C
- Compatibility: Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Tool Compatibility: Works with 6 tonne, 12 tonne, indent, and hex crimp tools
- Dimensions (H x L x W): 10mm x 60mm x 40mm
- Weight: 0.1 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5 and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Suitable for use with standard 6 tonne, 12 tonne and indent and hex crimp tools
- Operating temperature range from -55°C to +155°C
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes greater than 10mm²
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors
- Suitable for use in electrical wiring and cabling installations
- Ideal for use in industrial, commercial, and residential electrical systems
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for sizes greater than 10mm²
Environmental Benefits
- Electro-tin plating enhances durability, reducing the need for frequent replacements and minimizing waste.
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Wattmaster Crimp Link Reducing Non-Insulated Copper 25mm² - 6mm² is available for immediate purchase, ideal for electrical jointing applications requiring reliable conductor size reduction.
