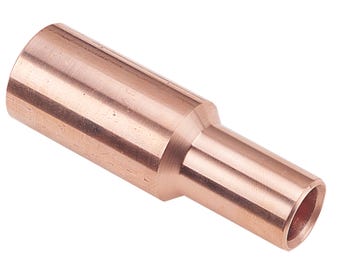

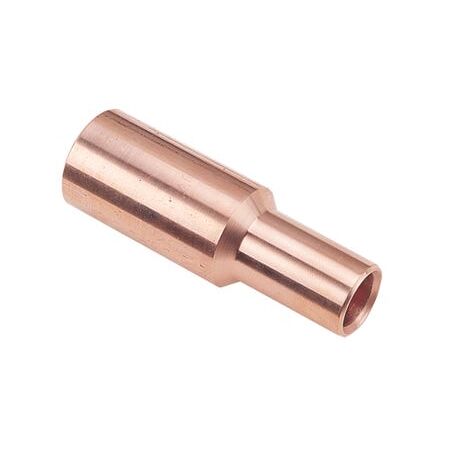

Copper Reducing Link 120-16mm² Cabac
Cabac copper reducing link features 120mm² to 16mm² conductor sizes, crimp connection, and plain copper build. Ideal for joining cables of different sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper Reducing Link, Copper Crimp Reducing Link, Copper Cable Joiner, CASR120/16
Technical Specifications
- Conductor Sizes: 120 mm² to 16 mm²
- Material: 99.95% pure oxygen-free copper
- Metal State: Fully annealed
- Tensile Strength: 200 MPa
- Electrical Conductivity: 99.7% IACS
- Operating Temperature: -55°C to 155°C
- Connection Type: Crimp
- Conductor Compatibility: Circular and sector stranded copper conductors
- Insulation: None
- Large Barrel Crimp Die: HT130-C-120
- Small Barrel Crimp Die: HT130-C-16
- Large Hex Die Across Flats: 16.5 mm
- Small Hex Die Across Flats: 6.3 mm
- Crimps: One crimp per barrel
- Application: Reducing joints, fly leads and cable tails
- Manufacturer Part Number: CASR120/16
- Dimensions (H x L x W): 30mm x 70mm x 30mm
- Weight: 0.1 kg
Key Features
- Joins 120 mm² and 16 mm² copper conductors
- Manufactured from high-conductivity oxygen-free copper
- Suitable for circular and sector stranded conductors
- Impermeable barrier helps protect the connection from oils and water
- Compatible with CABAC and standard Australian/NZ copper crimp tooling
- Designed for secure electrical and mechanical crimp connections
Professional Installation Requirements
- Installation should be performed by a licensed electrician or suitably qualified electrical tradesperson using the specified CABAC crimp dies and following applicable wiring rules and manufacturer instructions.
Applications
- Reducing copper cable joints
- Connecting large conductors to smaller fly leads
- Electrical distribution and power connection systems
- Cable tails and equipment connection points
- Commercial, industrial and infrastructure wiring installations
Standards & Compliance
- AS 4325.1 for compression and mechanical connectors for power cables, as stated by CABAC
Environmental Benefits
- Copper is highly recyclable and can be recovered at the end of service life
- Durable annealed copper construction supports long service life and reduces replacement waste
- High electrical conductivity can help minimise connection losses when correctly installed
Warranty Information
CABAC's published warranty policy states that products are generally covered by a 12-month warranty from date of purchase where no other warranty is specified. Claims are subject to the manufacturer's conditions, and misuse, neglect and incorrect installation are excluded.
Available Now
Available through CABAC and authorised Australian electrical distributors.
