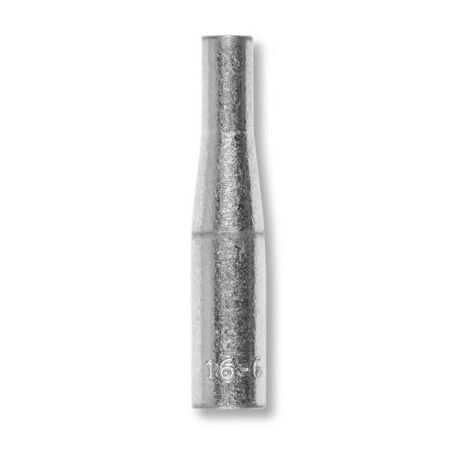

Copper Reducing Link 16sqmm Tinned Non-Insulated Wattmaster
Wattmaster copper reducing crimp link joins 16sqmm cable conductors of different sizes for reliable in-line connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electrolytic grade copper, electro-tin plated
- Conductor sizes: Reduces from 16mm² to 6mm²
- Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Operating temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 50mm x 30mm
- Weight: 0.1 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5 and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Compatible with standard 6 tonne, 12 tonne, indent and hex crimp tools
- Operating temperature range from -55°C to +155°C
- All sizes sold individually
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors
- Suitable for use in electrical wiring and cabling installations requiring conductor size reduction
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Durable copper construction ensures long service life reducing waste
- Electro-tin plating enhances corrosion resistance, minimizing replacement frequency
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms and conditions.
Available Now
The Wattmaster Crimp Link Reducing Non-Insulated Copper 16mm² - 6mm² is available for immediate purchase, ideal for electrical wiring and cabling applications requiring conductor size reduction.
