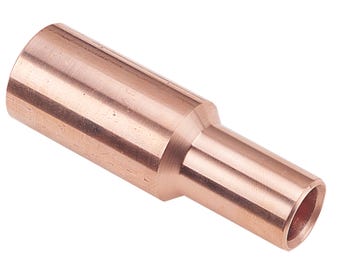

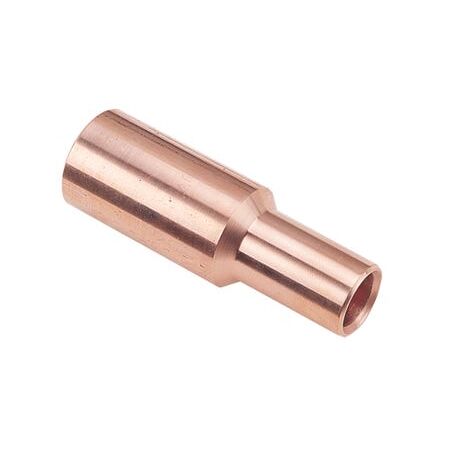

Copper Reducing Link 185-16mm² Cabac
Cabac copper reducing link features 185mm² to 16mm² conductor sizes, crimp connection, and plain copper build. Ideal for joining cables of different sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper Reducing Link, Copper Crimp Reducing Link, Copper Cable Reducer, CASR185/16
Technical Specifications
- Conductor Sizes: 185mm² to 16mm²
- Material: 99.95% pure copper
- Conductivity: 99.7% IACS
- Operating Temperature: -55°C to 155°C
- Connection Type: Crimp connection
- Barrier Type: Impermeable centre barrier for oil and water resistance
- Compatible Tooling: CABAC, MSS Power and standard Australian/NZ crimping dies
- Large Barrel Crimp Die: HT130-C-185
- Small Barrel Crimp Die: HT130-C-16
- Large Barrel Hex Die: 20mm A/F
- Small Barrel Hex Die: Approximately 6.3mm A/F
- Compliance: AS 4325.1
- Dimensions (H x L x W): 32mm x 70mm x 24mm
- Weight: 0.12 kg
Key Features
- Joins 185mm² and 16mm² stranded copper conductors
- Manufactured from high-conductivity annealed copper
- Barrier construction helps prevent oil and water migration through the joint
- Suitable for circular and sector stranded copper conductors
- Designed for reducing joints, fly leads and cable tails
- Crimpable with standard Australian and New Zealand tooling
- Unplated copper construction with high electrical conductivity
Professional Installation Requirements
- Installation and crimping should be performed by a suitably qualified electrician using the specified CABAC or compatible tooling and dies. Follow the manufacturer’s crimping instructions and applicable wiring rules, including AS/NZS 3000 where relevant.
Applications
- Joining different-size copper power conductors
- Electrical switchboard and distribution connections
- Reducing joints between large cables and smaller cable tails
- Fly-lead and cable-tail connections
- Industrial, commercial and infrastructure electrical installations
Standards & Compliance
- AS 4325.1 for compression and mechanical connectors for power cables, as specified by the manufacturer
- Installation should comply with AS/NZS 3000 where the link is used in a low-voltage electrical installation
Environmental Benefits
- Copper is highly recyclable at end of service life
- High-conductivity copper supports low-resistance electrical connections and helps minimise avoidable energy losses
- Annealed construction and corrosion-resistant material properties support extended service life and reduced replacement waste
Warranty Information
CABAC’s general warranty provides repair or replacement for defective goods for one year from the date of supply, subject to correct installation, use and the applicable Australian Consumer Law guarantees.
Available Now
Available through CABAC and authorised Australian electrical wholesalers and distributors.
