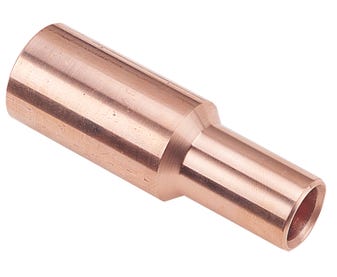

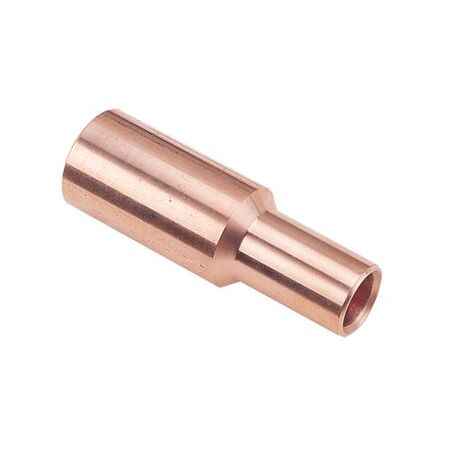

Copper Reducing Link 240-70mm² Cabac
Cabac copper reducing link features 240mm² to 70mm² conductor sizes, crimp connection, and plain copper build. Ideal for joining cables of different sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper Reducing Link, Copper Crimp Link, Copper Cable Reducer, CASR240/70
Technical Specifications
- Part Number: CASR240/70
- Conductor Sizes: 240mm² large end to 70mm² small end
- Material: High-conductivity oxygen-free copper
- Copper Purity: 99.95% nominal
- Electrical Conductivity: 99.7% IACS
- Operating Temperature: -55°C to +155°C
- Connection Method: Crimped connection
- Large Barrel Crimps: 3
- Small Barrel Crimps: 1
- Large Barrel Hex Across Flats: 23.1mm
- Small Barrel Hex Across Flats: 11.5mm
- Large Barrel Length: 38mm
- Small Barrel Length: 24mm
- Overall Length: 85mm
- Standard Tooling: CABAC and MSS Power copper dies; standard Australian/NZ dies
- Standard Compliance: AS 4325 Part 1
- Dimensions (H x L x W): 28.5mm x 85mm x 28.5mm
- Weight: 0.1 kg
Key Features
- Joins different-size copper conductors in reducing joint, fly-lead and tail applications
- Suitable for circular and sector stranded copper conductors
- Impermeable barrier helps prevent oil and water ingress through the connection
- Manufactured from annealed, high-conductivity copper for reliable crimping
- Compatible with CABAC, MSS Power and interchangeable Australian/NZ crimp tooling
- Designed for three crimps on the 240mm² barrel and one crimp on the 70mm² barrel
Professional Installation Requirements
- Installation should be performed by a licensed electrician or suitably qualified electrical tradesperson using the specified CABAC or compatible copper crimp dies. Follow the manufacturer's crimping sequence and do not crimp close to the centre barrier.
Applications
- Joining 240mm² and 70mm² copper power conductors
- Reducing joints in switchboards and distribution equipment
- Copper cable fly leads and tails
- Industrial electrical installations
- Power distribution and underground cable connection work
Standards & Compliance
- AS 4325 Part 1 for compression-type electrical connectors and cable lugs
Environmental Benefits
- Copper is highly recyclable at the end of the product's service life
- High-conductivity copper supports low-resistance electrical connections and efficient current transfer
- Annealed copper construction and corrosion-resistant barrier design support long service life and reduce replacement waste
Warranty Information
CABAC warranty coverage is generally one year from the date of supply for defects, subject to the manufacturer's warranty terms and exclusions. Australian Consumer Law guarantees also apply where relevant.
Available Now
Available through CABAC and authorised Australian electrical distributors.
