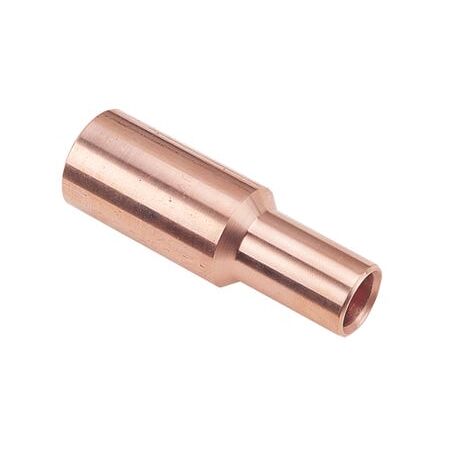

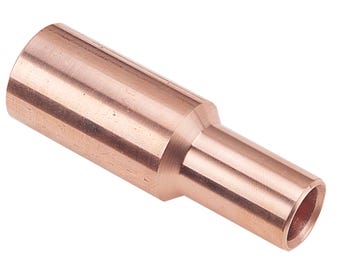

Copper Reducing Link 400-50mm² Cabac
Cabac copper reducing link features 400mm² to 50mm² conductor sizes, crimp connection, and plain copper build. Ideal for joining cables of different sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper Reducing Link, Copper Crimp Link, Copper Reducer Connector, Copper Cable Reducing Sleeve
Technical Specifications
- Conductor Size: 400 mm² to 50 mm²
- Material: 99.95% pure copper
- Connection Type: Compression crimp
- Design: Barrier type, impermeable to oils and water
- Conductor Compatibility: Circular and sector-stranded copper conductors
- Operating Temperature: -55°C to 155°C
- Electrical Conductivity: 99.7% IACS
- Resistivity: 1.738 micro-ohm cm
- Tensile Strength: 200 MPa
- Ductility: 40%
- Plating: Unplated copper
- Crimping: Use CABAC or compatible Australian/NZ standard copper dies
- Standard Reference: AS/NZS 4325.1:1995
- Dimensions (H x L x W): 35mm x 110mm x 35mm
- Weight: 0.35 kg
Key Features
- Joins 400 mm² and 50 mm² copper conductors in a single reducing connector
- Suitable for reducing joints, fly leads and cable tails
- Barrier construction helps prevent ingress of oils and water
- Suitable for circular and sector-stranded copper conductors
- Made from fully annealed, high-conductivity copper
- Designed for crimp installation using compatible power tooling
- Unplated construction supports long-term storage where limited shelf life is expected
Professional Installation Requirements
- Installation should be performed by a licensed electrical contractor using the manufacturer's specified crimping dies and procedures. The completed connection should comply with applicable wiring rules and be inspected and tested before energisation.
Applications
- Low-voltage power cable reducing joints
- Joining large copper conductors to smaller copper conductors
- Switchboard and distribution equipment wiring
- Cable tails and fly-lead connections
- Commercial, industrial and infrastructure electrical installations
Standards & Compliance
- AS/NZS 4325.1:1995, Compression and mechanical connectors for power cables with copper or aluminium conductors, Part 1: Test methods and requirements. CABAC identifies AS 4325 Part 1 as the applicable connector standard. ([inus04aapb1h3nprod.dxcloud.episerver.net](https://inus04aapb1h3nprod.dxcloud.episerver.net/en-us/standards/as-nzs-4325-1-1995-116410_saig_as_as_243360/?utm_source=openai))
- AS/NZS 3000:2018 Wiring Rules should be followed for the associated electrical installation and crimp connection. ([moodle.unitec.ac.nz](https://moodle.unitec.ac.nz/pluginfile.php/312733/mod_resource/content/1/ASNZS3000-2018%2BA1.pdf?utm_source=openai))
Environmental Benefits
- Copper is highly recyclable and can be recovered at the end of the product's service life
- Durable copper construction can support long service life and reduce replacement waste
- High electrical conductivity helps minimise resistive losses at the connection when correctly installed
- Barrier construction helps protect the joint from oils and water, supporting connection longevity
Warranty Information
CABAC's general warranty terms provide a 12-month warranty from the date of purchase where no other product-specific warranty is stated, subject to correct use and installation. Australian Consumer Law rights also apply. ([cabac.com.au](https://www.cabac.com.au/warranties-and-returns?utm_source=openai))
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to current range status and distributor stock.
