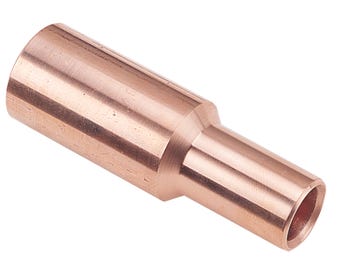

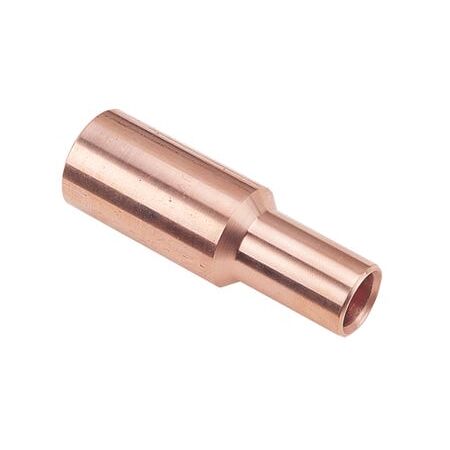

Copper Reducing Link 400-95mm² Cabac
Cabac copper reducing link features 400mm² to 95mm² conductor sizes, crimp connection, and plain copper build. Ideal for joining cables of different sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper Reducing Link, Copper Crimp Link, Copper Cable Joint, 400 to 95 mm² Cable Reducer
Technical Specifications
- Large Conductor Size: 400 mm²
- Small Conductor Size: 95 mm²
- Connection Type: Crimp
- Material: 99.95% pure, fully annealed copper
- Copper Conductivity: 99.7% IACS
- Oxygen Content: Maximum 30 ppm
- Tensile Strength: 200 MPa
- Operating Temperature: -55°C to 155°C
- Design: Impermeable barrier against oils and water
- Suitable Conductors: Circular and sector stranded copper conductors
- Large-End Crimp Tooling: CABAC ECW-H3D-400 or equivalent
- Small-End Crimp Tooling: CABAC HT130-C-95 or equivalent
- Large-End Crimps: 3
- Small-End Crimps: 1
- Plating: Unplated
- Dimensions (H x L x W): 55mm x 110mm x 35mm
- Weight: 0.65 kg
Key Features
- Joins 400 mm² and 95 mm² copper conductors in a single crimp connection
- Suitable for reducing joints, fly leads and cable tails
- Barrier construction helps prevent ingress of oil and water
- Manufactured from high-conductivity annealed copper
- Compatible with standard Australian and New Zealand crimping dies
- Tooling is interchangeable with compatible Cable Accessories, Utilux and Burndy systems
- Do not crimp close to the centre barrier, as the link may shear
Professional Installation Requirements
- Installation should be performed by a licensed electrical contractor using the specified CABAC or equivalent crimping dies and following the cable manufacturer’s instructions and applicable wiring requirements.
Applications
- Electrical power cable reducing joints
- Low-voltage power distribution systems
- Switchboard and electrical equipment cable terminations
- Fly leads and cable tails
- Industrial and commercial cable jointing
Standards & Compliance
- AS/NZS 4325.1:1995 for compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Copper is highly recyclable and can be recovered at end of product life
- High-conductivity copper supports low-resistance electrical connections and reduced connection losses
- Durable annealed copper construction can extend service life and reduce replacement waste
Warranty Information
CABAC warranty coverage is generally 12 months from the date of purchase where no product-specific warranty is stated, subject to correct installation and use. Australian Consumer Law guarantees also apply.
Available Now
Available through CABAC and authorised Australian electrical wholesalers and distributors.
