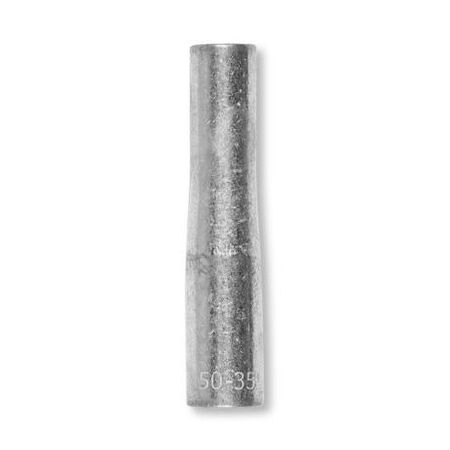

Copper Reducing Link 50-35sqmm Non-Insulated Wattmaster
Wattmaster copper reducing crimp link 50-35sqmm for in-line cable jointing. High conductivity, electrolytic-grade copper.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Material: Electrolytic grade copper, electro-tin plated
- Conductor Size Reduction: From 50mm² to 35mm²
- Suitable for stranded and fine stranded copper conductors (class 2, 5, and 6)
- Operating Temperature: -55°C to +155°C
- Compliance: AS/NZS 4325.1:1995 (cl7) for sizes >10mm²
- Dimensions (H x L x W): 10mm x 80mm x 60mm
- Weight: 0.1 kg
Key Features
- Uninsulated electrolytic grade copper crimp links for stranded and fine stranded copper conductors (class 2, 5 and 6)
- Electro-tin plated for corrosion resistance
- Chamfered ends for ease of entry of stranded conductors
- Compatible with standard 6 tonne, 12 tonne, indent and hex crimp tools
- Operating temperature range from -55°C to +155°C
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical jointing of differing CSA conductors in residential, commercial, and industrial wiring
- Suitable for use in electrical installations requiring reliable copper conductor connections
Standards & Compliance
- Complies with AS/NZS 4325.1:1995 (cl7) for electrical connectors
Environmental Benefits
- Electro-tin plating enhances durability and reduces the need for frequent replacements, minimizing waste
Warranty Information
Warranty against manufacturing defects as per Wattmaster standard terms and conditions.
Available Now
Wattmaster Crimp Link Reducing Non-Insulated Copper 50mm² - 35mm² is available for immediate purchase, ideal for electrical jointing applications requiring reliable conductor connections.
