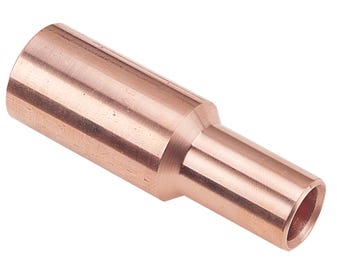

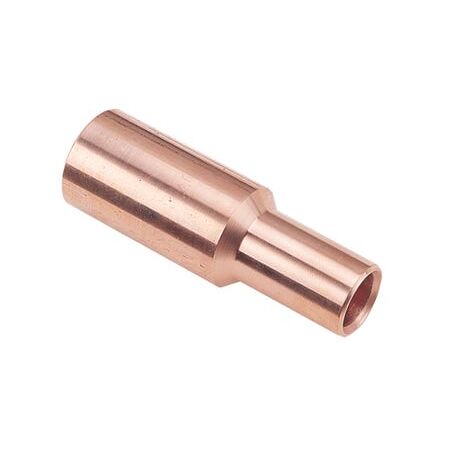

Copper Reducing Link 500-185mm² Cabac
Cabac copper reducing link features 500mm² to 185mm² conductor sizes, crimp connection, and plain copper build. Ideal for joining cables of different sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper Reducing Link, Copper Cable Reducing Splice, Copper Crimp Reducing Link, CASR500/185
Technical Specifications
- Item Number: CASR500/185
- Conductor Size Large End: 500mm²
- Conductor Size Small End: 185mm²
- Connection Type: Crimp
- Material: High-conductivity copper, approximately 99.95% pure
- Copper Conductivity: Approximately 99.7% IACS
- Operating Temperature: -55°C to 155°C
- Large Barrel Crimp Die: ECW-H3D-500
- Small Barrel Crimp Die: HT130-C-185
- Large Barrel Crimps: 3
- Small Barrel Crimps: 1
- Large Barrel A/F Hex Die: 31mm
- Small Barrel A/F Hex Die: 20mm
- Packaging Unit: 1 each
- Dimensions (H x L x W): 55mm x 115mm x 55mm
- Weight: 0.98 kg
Key Features
- Joins copper conductors of different cross-sectional areas
- Suitable for circular and sector stranded copper conductors
- Barrier-type construction helps provide an impermeable separation against oils and water
- Compatible with CABAC and MSS Power standard crimp tooling
- Designed for use with standard Australian/NZ copper crimp dies
- Fully annealed copper construction supports reliable crimping and electrical conductivity
- Unplated copper finish for extended shelf life compared with plated alternatives
Professional Installation Requirements
- Installation should be performed by a licensed electrician or suitably qualified electrical tradesperson using the specified crimping tool, dies and manufacturer’s instructions. De-energise and verify all conductors before installation.
Applications
- Reducing joints between 500mm² and 185mm² copper conductors
- Electrical distribution and switchboard connections
- Commercial and industrial power cable installations
- Copper cable repairs, extensions and transition connections
- Joining circular or sector stranded copper cables of different sizes
Standards & Compliance
- AS/NZS 4325.1:1995 for compression and mechanical connectors for power cables, where applicable to the installation and product testing requirements
Environmental Benefits
- Copper is highly recyclable and can be recovered at end of service life
- Durable copper construction can reduce replacement frequency and material waste
- High electrical conductivity supports efficient power transmission with reduced resistive losses
Warranty Information
CABAC’s general warranty provides repair or replacement for defective goods for one year from the date of supply, subject to correct installation, use within specifications and applicable Australian Consumer Law rights.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock levels.
