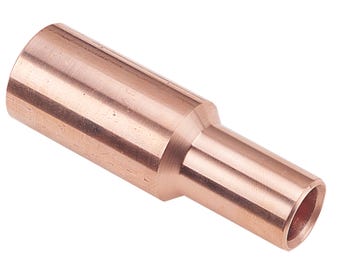

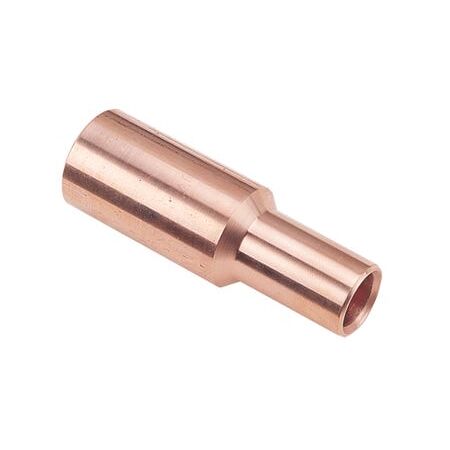

Copper Reducing Link 500-240mm² Cabac
Cabac copper reducing link features 500mm² to 240mm² conductor sizes, crimp connection, and plain copper build. Ideal for joining cables of different sizes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper Reducing Link, Copper Crimp Splice, Copper Cable Reducer, CASR500/240
Technical Specifications
- Product Code: CASR500/240
- Conductor Sizes: 500mm² to 240mm²
- Material: Fully annealed copper, 99.95% purity
- Connection Type: Crimp
- Barrier Type: Impermeable central barrier for oil and water resistance
- Operating Temperature: -55°C to 155°C
- Electrical Conductivity: 99.7% IACS
- Large-End Crimping: ECW-H3D-500 copper die, 3 crimps, 31.0mm A/F hex
- Small-End Crimping: HT130-C-240 copper die, 3 crimps, 23.1mm A/F hex
- Tool Compatibility: CABAC, MSS Power, Utilux, Burndy and standard Australian/NZ copper crimping tooling
- Plating: Unplated copper
- Standard: AS 4325 Part 1, Australia
- Dimensions (H x L x W): 38mm x 120mm x 38mm
- Weight: 0.25 kg
Key Features
- Joins different-sized copper conductors in-line
- Suitable for circular and sector-stranded copper conductors
- Impermeable barrier helps prevent oil and water migration through the connection
- Designed for reducing joints, fly leads and tails
- Requires three crimps at each end using the specified copper dies
- Do not crimp close to the centre barrier because the link may shear
- Supplied as one individual link
Professional Installation Requirements
- Installation and crimping should be performed by a licensed electrician or suitably qualified electrical tradesperson using the specified CABAC-compatible copper dies and approved installation procedures.
Applications
- Electrical cable reducing joints
- High-current copper cable connections
- Switchboard and distribution equipment
- Fly leads and cable tails
- Industrial, commercial and infrastructure electrical installations
Standards & Compliance
- AS 4325 Part 1 for compression connectors and mechanical connectors for power cables
Environmental Benefits
- Copper is highly recyclable at end of service life
- Durable copper construction can reduce replacement waste over the installation lifetime
- High electrical conductivity supports low-resistance cable connections
Warranty Information
No product-specific warranty duration was identified in CABAC’s published product documentation. The product remains subject to CABAC’s applicable sale terms and non-excludable rights and remedies under Australian Consumer Law. ([cabac.com.au](https://www.cabac.com.au/terms-and-conditions))
Available Now
Available through CABAC and authorised Australian electrical distributors; availability may vary by branch and order status. ([rexel.com.au](https://www.rexel.com.au/are/category/Wiring-Accessories/Lugs-%26-Links/Crimp-splices-for-copper-conductor/Link-Cable-Reducing-Copper-500-240mm2/CABCASR500-240/p/10332069))
