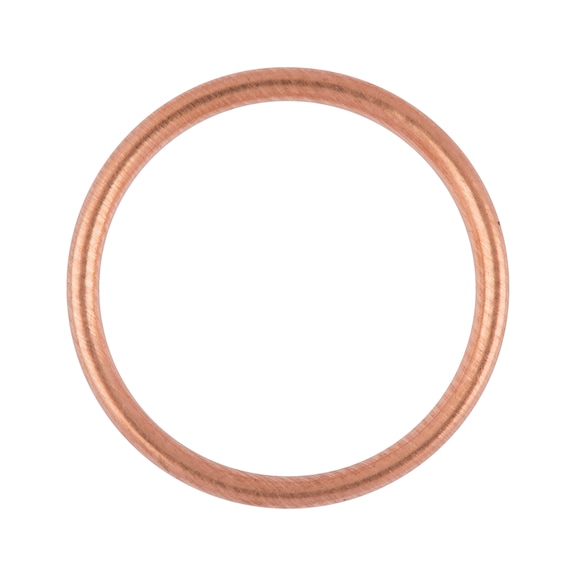

Copper Sealing Ring Shape C | Asbestos-Free & Corrosion Resistant | Max Temp 300°C | @Pack of 10 | by Wurth
Copper sealing ring shape C is designed for reliable sealing in automotive and machinery applications. With a maximum temperature resistance of 300°C and a corrosion-resistant, asbestos-free material, this sealing ring ensures a secure fit for male threads of 16 x 1.5 mm. Ideal for replacements in Mercedes, Peugeot, and Renault models, it softens with preheating to adapt to uneven surfaces under pressure.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Ring Shape C | Asbestos-Free & Corrosion Resistant | Max Temp 300°C | @Pack of 10 | by Wurth
Brand: Wurth
SKU: 46201622
Alternatively Known As: Copper sealing washer, Copper gasket ring, Shape C copper seal, Automotive sealing ring, Copper crush washer
Technical Specifications
- Outer diameter (d2): 21.9 mm
- Internal diameter (d1): 16.2 mm
- Thickness (h1): 2 mm
- Nominal size: 16 x 22 mm
- Material: Copper
- Surface: Plain
- Form: C
- DIN standard: 7603
- Max temperature resistance: 300 °C
- Suitable for male thread: 16 x 1.5 mm
- Corresponds to original spare part numbers: Mercedes 007 603 016303, Peugeot 016402, Renault 7700266044, Renault 7703062062, VW/Audi N.013 845.1
- Dimensions (H x L x W): 2mm x 22mm x 22mm
- Weight: 0.01 kg
Key Features
- Asbestos-free copper sealing ring
- Shape C design
- Corrosion resistant except in presence of strong acids
- Softens with preheating to embed into uneven surfaces under pressure
- RoHS-compliant
- Plain surface finish
- Max temperature resistance up to 300 °C
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper sealing and fitment.
Applications
- Sealing applications in automotive and machinery where corrosion resistance is required
- Suitable for use with male thread 16 x 1.5 mm
- Replacement sealing ring for Mercedes, Peugeot, Renault, VW/Audi models
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Asbestos-free material ensures safer handling and environmental compliance
- RoHS-compliant, reducing hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Copper Filling Sealing Ring Shape C 10 PCS is available for immediate purchase, ideal for automotive and industrial sealing applications.
