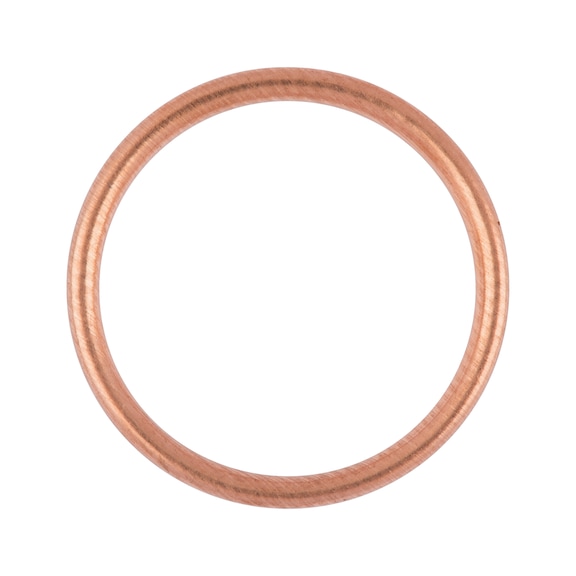

Copper Sealing Ring Shape C | Asbestos-Free & Corrosion Resistant | Max Temp 300°C | @Pack of 25 | by Wurth
The Copper Sealing Ring Shape C is designed for reliable sealing in mechanical assemblies, featuring an asbestos-free and corrosion-resistant construction. With a maximum temperature resistance of 300°C, it's perfect for automotive and industrial applications, ensuring a secure fit with male threads of 10 x 1 mm and R 1/8 inch.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Ring Shape C | Asbestos-Free & Corrosion Resistant | Max Temp 300°C | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 46201014
Alternatively Known As: Copper sealing ring, Copper gasket, Copper washer, Shape C copper seal, Copper ring seal
Technical Specifications
- Outer diameter (d2): 13.9 mm
- Internal diameter (d1): 10.2 mm
- Thickness (h1): 1.5 mm
- Nominal size: 10 x 14 mm
- Material: Copper
- Surface: Plain
- Form: C
- DIN: 7603
- Max temperature resistance: 300 °C
- Suitable for male thread: 10 x 1 mm
- Suitable for male thread (imperial): R 1/8 inch
- RoHS-compliant: Yes
- Corresponds to original spare part number: Mercedes 007 603 010302
- Dimensions (H x L x W): 1.5mm x 14mm x 14mm
- Weight: 0.01 kg
Key Features
- Asbestos-free copper ring
- Corrosion resistant
- Shape C design
- Softens with preheating to embed into uneven surfaces
- Suitable for use except in presence of strong acids
- RoHS-compliant
- Max temperature resistance 300 °C
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper sealing and safety.
Applications
- Used for sealing in mechanical assemblies
- Suitable for automotive and industrial applications
- Ideal for use with male threads 10 x 1 mm and R 1/8 inch
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Asbestos-free material ensures safer handling and environmental compliance
- RoHS-compliant, reducing hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Sealing Ring Copper Filling Seal Shape C 25 PCS is available for immediate purchase, ideal for automotive and industrial sealing applications.
