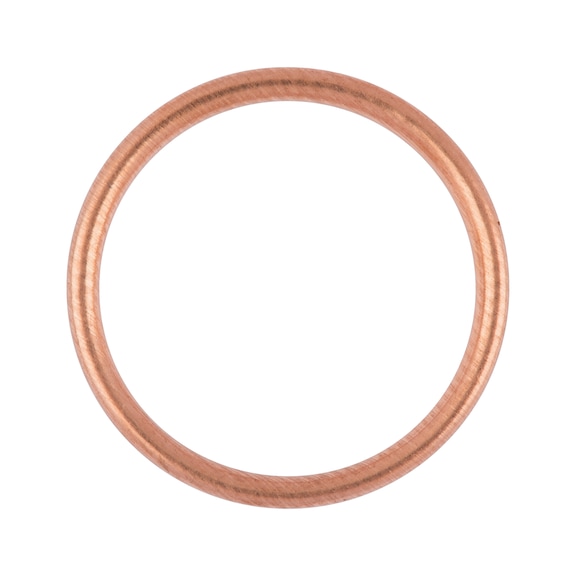

Copper Sealing Ring Shape C | Asbestos-Free & Corrosion Resistant | Max Temp 300°C | @Pack of 25 | by Wurth
The Copper Sealing Ring Shape C is designed for reliable sealing in mechanical assemblies, featuring an asbestos-free construction and a maximum temperature resistance of 300°C. Ideal for automotive and industrial applications, this corrosion-resistant seal softens with preheating to ensure a perfect fit on uneven surfaces, making it a must-have for qualified technicians.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Ring Shape C | Asbestos-Free & Corrosion Resistant | Max Temp 300°C | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 46201216
Alternatively Known As: Copper sealing ring, Copper gasket, Copper washer, Shape C copper seal, Copper ring seal
Technical Specifications
- Outer diameter (d2): 15.9 mm
- Internal diameter (d1): 12.2 mm
- Thickness (h1): 2 mm
- Nominal size: 12 x 16 mm
- Material: Copper
- Surface: Plain
- Form: C
- DIN standard: 7603
- Max temperature resistance: 300 °C
- Suitable for male thread: 12 x 1.5 mm
- Corresponds to original spare part number VW/Audi: N.013 853.2
- Dimensions (H x L x W): 2mm x 16mm x 16mm
- Weight: 0.01 kg
Key Features
- Asbestos-free copper ring
- Corrosion resistant except in presence of strong acids
- Shape C design
- Softens with special preheating to embed into uneven surfaces under pressure
- RoHS-compliant
- Plain surface finish
- Max temperature resistance of 300 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper sealing and fitment, especially in automotive or industrial applications.
Applications
- Used for sealing in mechanical assemblies
- Suitable for male thread 12 x 1.5 mm
- Ideal for automotive and industrial applications requiring corrosion-resistant seals
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Asbestos-free material ensures safer handling and reduced environmental hazards
- RoHS-compliant, limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Sealing Ring Copper Filling Seal Shape C 25 PCS is available for immediate purchase, ideal for automotive and industrial sealing applications.
