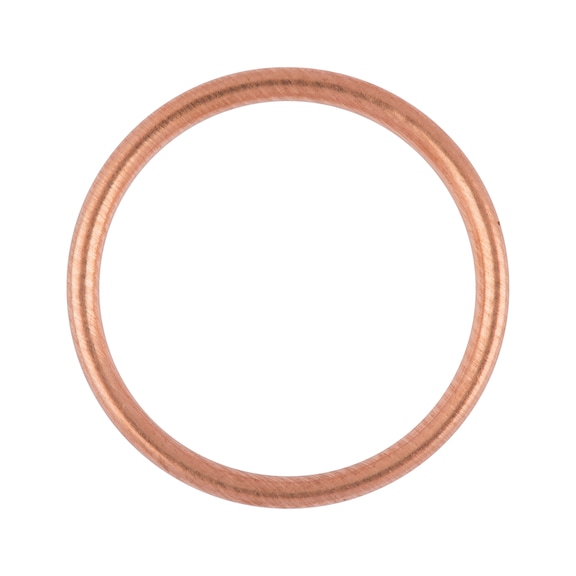

Copper Sealing Ring Shape C | Asbestos-Free & Corrosion Resistant | Max Temp 300°C | @Pack of 25 | by Wurth
The Copper Sealing Ring Shape C is designed for reliable sealing in mechanical and plumbing applications. With a maximum temperature resistance of 300°C and a corrosion-resistant, asbestos-free material, it ensures a secure fit for pressure-tight connections. Ideal for automotive and plumbing use, this pack of 25 rings is perfect for professionals seeking quality and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Ring Shape C | Asbestos-Free & Corrosion Resistant | Max Temp 300°C | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 46201422
Alternatively Known As: Copper sealing washer, Copper gasket, Copper ring seal, Shape C copper seal
Technical Specifications
- Outer diameter (d2): 21.9 mm
- Internal diameter (d1): 14.2 mm
- Thickness (h1): 2 mm
- Nominal size: 14 x 22 mm
- Material: Copper
- Surface: Plain
- Form: C
- DIN standard: 7603
- Maximum temperature resistance: 300 °C
- Dimensions (H x L x W): 2mm x 22mm x 22mm
- Weight: 0.02 kg
Key Features
- Asbestos-free copper sealing ring
- Corrosion resistant
- Shape C design
- Softens with preheating to embed into uneven surfaces
- RoHS-compliant
- Max temperature resistance of 300 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper sealing and pressure resistance.
Applications
- Used for sealing in mechanical assemblies
- Suitable for use in plumbing and automotive applications
- Ideal for pressure-tight connections excluding strong acid environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Asbestos-free material ensures safer handling and environmental impact
- RoHS-compliant, reducing hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth Sealing Ring Copper Filling Seal Shape C 25 PCS is available for immediate purchase, ideal for mechanical and plumbing sealing applications.
