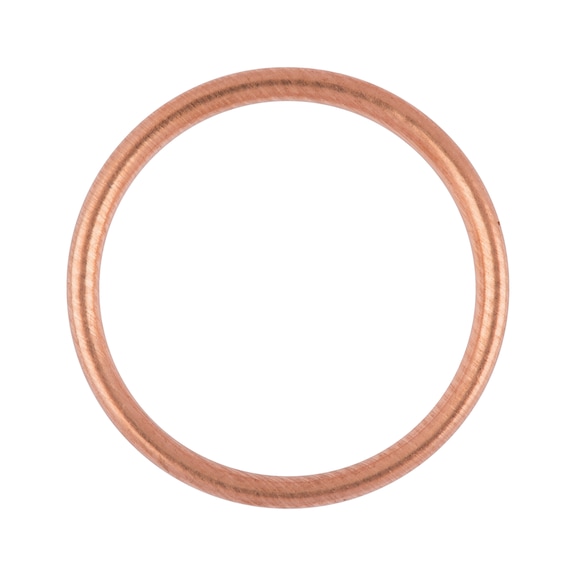

Copper Sealing Ring Shape C | Asbestos-Free & Corrosion Resistant | Max Temp 300°C | by Wurth
The Copper Sealing Ring Shape C is designed for reliable sealing in automotive and industrial applications. With a maximum temperature resistance of 300°C and a corrosion-resistant, asbestos-free construction, this copper washer ensures optimal performance in demanding environments. Ideal for qualified technicians, it provides a secure fit for various sealing and fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Ring Shape C | Asbestos-Free & Corrosion Resistant | Max Temp 300°C | by Wurth
Brand: Wurth
SKU: 4620610
Alternatively Known As: Copper sealing ring, Copper washer, Shape C copper ring, DIN 7603 copper ring
Technical Specifications
- Outer diameter (d2): 9.9 mm
- Internal diameter (d1): 6.2 mm
- Thickness (h1): 1.5 mm
- Nominal size: 6 x 10 mm
- Material: Copper
- Surface: Plain
- Form: C
- DIN: 7603
- Max. temperature resistance: 300 °C
- Corresponds to original spare part number: Mercedes 007 603 008103, VW/Audi N.013 830.2
- Dimensions (H x L x W): 1.5mm x 10mm x 10mm
- Weight: 0.1 kg
Key Features
- Asbestos-free copper ring
- Corrosion resistant
- Softened metal structure via special preheating for better embedding
- Suitable for use except in presence of strong acids
- RoHS-compliant
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper sealing and safety.
Applications
- Sealing and fastening applications in automotive and industrial machinery
- Suitable for use in environments requiring corrosion-resistant sealing elements
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Asbestos-free material improves environmental safety and health
- RoHS-compliant, ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy.
Available Now
The Wurth asbestos-free copper ring shape C 6x10mm is available for immediate purchase, ideal for automotive and industrial sealing applications.
