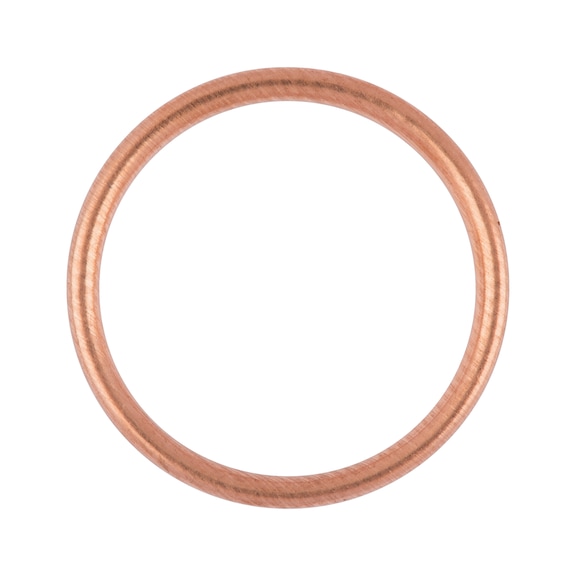

Copper Sealing Ring Shape C | Asbestos-Free & High Corrosion Resistance | 300°C Temperature Rating | by Wurth
The Copper Sealing Ring Shape C is designed for effective sealing in automotive and industrial applications. With a high corrosion resistance and a maximum temperature rating of 300°C, this asbestos-free copper washer ensures a reliable seal even on uneven surfaces. Ideal for use with male threads of 8 x 1 mm, it meets RoHS compliance for safety and environmental standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Ring Shape C | Asbestos-Free & High Corrosion Resistance | 300°C Temperature Rating | by Wurth
Brand: Wurth
SKU: 4620812
Alternatively Known As: Copper sealing ring, Copper gasket ring, Shape C copper washer, Copper crush washer
Technical Specifications
- Outer diameter (d2): 11.9 mm
- Internal diameter (d1): 8.2 mm
- Thickness (h1): 1.5 mm
- Nominal size: 8 x 12 mm
- Material: Copper
- Surface: Plain
- Form: C
- DIN standard: 7603
- Max. temperature resistance: 300°C
- Suitable for male thread: 8 x 1 mm
- Corresponds to original spare part number: Mercedes 007 603 008301
- Dimensions (H x L x W): 1.5mm x 12mm x 12mm
- Weight: 0.1 kg
Key Features
- Asbestos-free copper ring with high corrosion resistance
- Softened metal structure via special preheating for better sealing
- Embeds into uneven surfaces under pressure for effective sealing
- RoHS-compliant and suitable for various sealing needs
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper sealing and safety.
Applications
- Sealing applications in automotive and industrial machinery
- Suitable for use with male thread 8 x 1 mm
- Ideal for high temperature environments up to 300°C
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Asbestos-free material reduces health and environmental hazards
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth asbestos-free copper ring shape C 8x12mm is available for immediate purchase, ideal for sealing applications in automotive and industrial settings.
