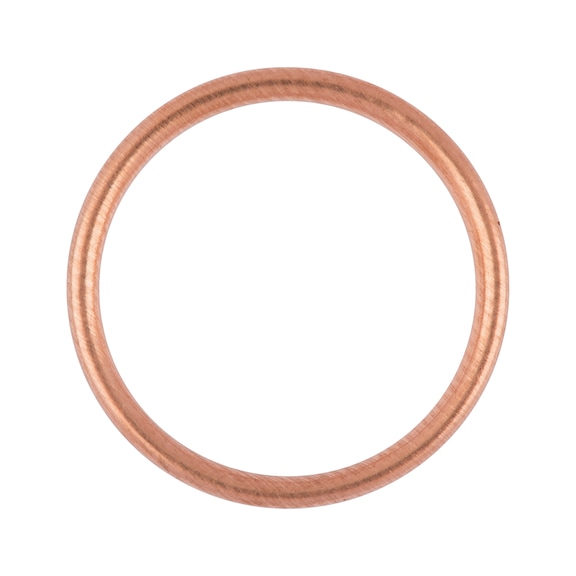

Copper Sealing Ring Shape C | Asbestos-Free | Max Temp 300°C | @Pack of 25 | by Wurth
Copper sealing ring shape C is designed for reliable sealing in mechanical assemblies, featuring an asbestos-free construction and a maximum temperature resistance of 300°C. Ideal for automotive repairs, this corrosion-resistant washer is perfect for use with male threads 14 x 1.5 mm and R 1/4 inch, ensuring a secure fit and long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Ring Shape C | Asbestos-Free | Max Temp 300°C | @Pack of 25 | by Wurth
Brand: Wurth
SKU: 46201420
Alternatively Known As: Copper sealing washer, Copper gasket ring, Copper crush washer, Shape C copper seal
Technical Specifications
- Outer diameter (d2): 19.9 mm
- Internal diameter (d1): 14.2 mm
- Thickness (h1): 2 mm
- Nominal size: 14 x 20 mm
- Material: Copper
- Surface: Plain
- Form: C
- DIN standard: 7603
- Max temperature resistance: 300 °C
- Suitable for male thread: 14 x 1.5 mm
- Suitable for male thread (imperial): R 1/4 inch
- Corresponds to original spare part numbers: Mercedes 007 603 014304, Peugeot 221904, VW N0138492, VW/Audi N.013 815.2
- Dimensions (H x L x W): 2mm x 20mm x 20mm
- Weight: 0.01 kg
Key Features
- Asbestos-free copper sealing ring
- Shape C design
- Corrosion resistant except in presence of strong acids
- Softens with special preheating to embed into uneven surfaces under pressure
- RoHS-compliant
- Plain surface finish
- Max temperature resistance of 300 °C
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper sealing and fitment.
Applications
- Used for sealing in mechanical assemblies requiring corrosion-resistant copper rings
- Suitable for automotive repairs and maintenance (Mercedes, Peugeot, VW, Audi)
- Ideal for use with male threads 14 x 1.5 mm and R 1/4 inch
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Asbestos-free material ensures safer handling and reduced environmental hazards
- RoHS-compliant, limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth Sealing Ring Copper Filling Seal Shape C 25 PCS is available for immediate purchase, ideal for automotive and mechanical sealing applications.
