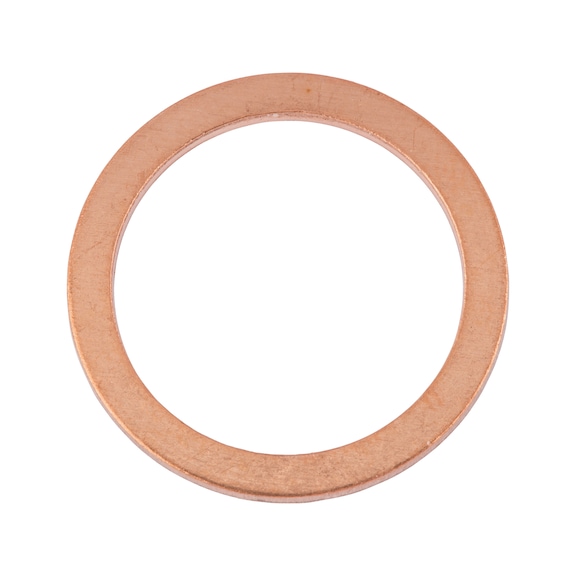

Copper Sealing Washer | 10 x 16 mm | High Temperature Resistance | RoHS Compliant | by Wurth
The Copper Sealing Washer is designed for optimal sealing in automotive and industrial applications, featuring a 10 x 16 mm size and high temperature resistance up to 300°C. Made from copper, it ensures excellent conductivity and conforms to DIN 7603 standards, making it ideal for use with Mercedes and VW/Audi male threads. Perfect for professionals seeking reliable sealing solutions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Washer | 10 x 16 mm | High Temperature Resistance | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 4601016
Alternatively Known As: Copper sealing washer, copper crush washer, sealing ring, copper gasket
Technical Specifications
- Outer diameter (d2): 15.9 mm
- Internal diameter (d1): 10.2 mm
- Thickness (h1): 1 mm
- Nominal size: 10 x 16 mm
- Material: Copper
- Surface: Plain
- Form: A
- DIN: 7603
- Max. temperature resistance: 300°C
- Suitable for male thread: 10 x 1 mm
- Suitable for male thread (imperial): R 1/8 inch
- Corresponds to original spare part number: Mercedes 007 603 010303, VW/Audi N.043 805.2
- Dimensions (H x L x W): 1mm x 16mm x 16mm
- Weight: 0.1 kg
Key Features
- Made of copper for excellent sealing and conductivity
- Plain surface finish
- RoHS-compliant
- High temperature resistance up to 300°C
- Conforms to DIN 7603 standard
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper sealing and fitment.
Applications
- Automotive: Suitable for Mercedes and VW/Audi male threads
- Industrial: Sealing applications requiring high temperature resistance
- General: Use with male threads 10 x 1 mm or R 1/8 inch
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Copper Sealing Washer 10 x 16 mm is available now for immediate purchase. Ideal for automotive and industrial sealing applications.
