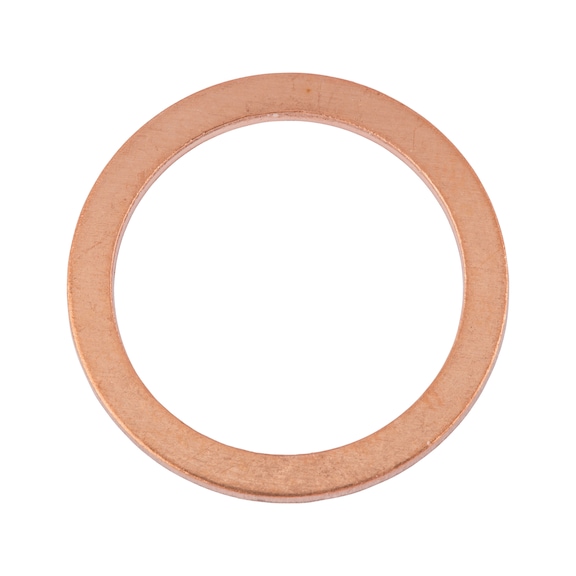

Copper Sealing Washer 12 x 17 mm | High-Quality Copper | RoHS Compliant | Max Temp 300°C | by Wurth
The Copper Sealing Washer 12 x 17 mm is designed for optimal sealing in automotive and industrial applications. Made from high-quality copper, it features a plain surface finish and is RoHS-compliant, ensuring environmental safety. With a maximum temperature resistance of 300°C, this washer is perfect for hydraulic and fuel systems, providing reliable performance for male thread 12 x 1.5 mm applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Washer 12 x 17 mm | High-Quality Copper | RoHS Compliant | Max Temp 300°C | by Wurth
Brand: Wurth
SKU: 4601217
Alternatively Known As: Copper sealing washer, copper crush washer, copper gasket, sealing ring
Technical Specifications
- Outer diameter (d2): 16.9 mm
- Internal diameter (d1): 12.2 mm
- Thickness (h1): 1.5 mm
- Nominal size: 12 x 17 mm
- Material: Copper
- Surface: Plain
- Form: A
- DIN: 7603
- Max temperature resistance: 300°C
- Suitable for male thread: 12 x 1.5 mm
- Corresponds to original spare part number Mercedes: 007603012110
- Dimensions (H x L x W): 1.5mm x 17mm x 17mm
- Weight: 0.1 kg
Key Features
- Made from high-quality copper for excellent sealing performance
- Plain surface finish for reliable sealing
- RoHS-compliant ensuring environmental safety
- Max temperature resistance up to 300°C
- Conforms to DIN 7603 standard
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper sealing and fitment.
Applications
- Automotive: Suitable for sealing in hydraulic and fuel systems
- Industrial: Used in machinery requiring copper sealing washers
- General: Suitable for male thread 12 x 1.5 mm applications
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- RoHS-compliant material reduces hazardous substances impact
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Copper Sealing Washer 12 x 17 mm is available for immediate purchase, ideal for automotive and industrial sealing applications.
