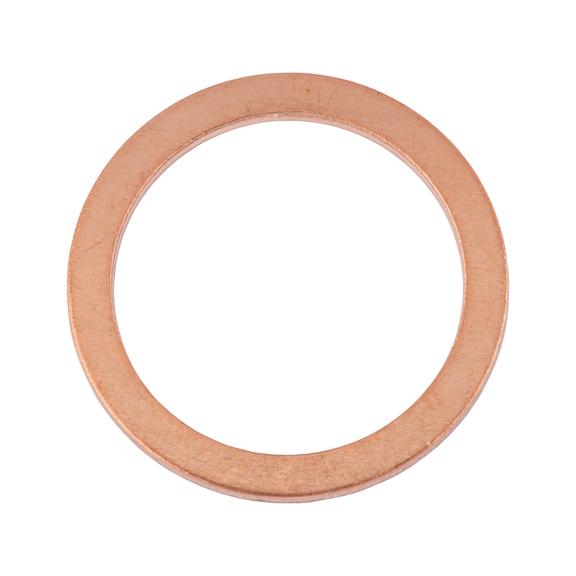

Copper Sealing Washer 5 x 9 mm | High-Quality Copper | RoHS Compliant | 300°C Temperature Resistance | by Wurth
The Copper Sealing Washer 5 x 9 mm is crafted from high-quality copper, ensuring excellent sealing performance in automotive and industrial applications. With a plain surface finish and RoHS compliance, it guarantees reliability and environmental safety. Designed to withstand temperatures up to 300°C, this sealing washer is perfect for high-pressure environments, making it an essential component for engines and hydraulic systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Washer 5 x 9 mm | High-Quality Copper | RoHS Compliant | 300°C Temperature Resistance | by Wurth
Brand: Wurth
SKU: 46059
Alternatively Known As: Copper sealing washer, copper gasket, sealing ring, crush washer
Technical Specifications
- Outer diameter (d2): 8.9 mm
- Internal diameter (d1): 5.2 mm
- Thickness (h1): 1 mm
- Nominal size: 5 x 9 mm
- Material: Copper
- Surface: Plain
- RoHS-compliant: Yes
- Form: A
- DIN: 7603
- Max. temperature resistance: 300°C
- Corresponds to original spare part number: Mercedes 007 603 005100, VW/Audi N.013 802.1
- Dimensions (H x L x W): 1mm x 9mm x 9mm
- Weight: 0.1 kg
Key Features
- Made from high-quality copper for excellent sealing performance
- Plain surface finish for reliable sealing
- RoHS-compliant ensuring environmental safety
- High temperature resistance up to 300°C
- Conforms to DIN 7603 standard
Professional Installation Requirements
- Installation should be performed by a qualified technician to ensure proper sealing and safety.
Applications
- Automotive: Used as sealing washers in engines and hydraulic systems
- Industrial: Sealing applications in machinery and equipment
- General: Suitable for use in high temperature and pressure environments
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances impact
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Copper Sealing Washer 5 x 9 mm is available for immediate purchase, ideal for automotive and industrial sealing applications.
