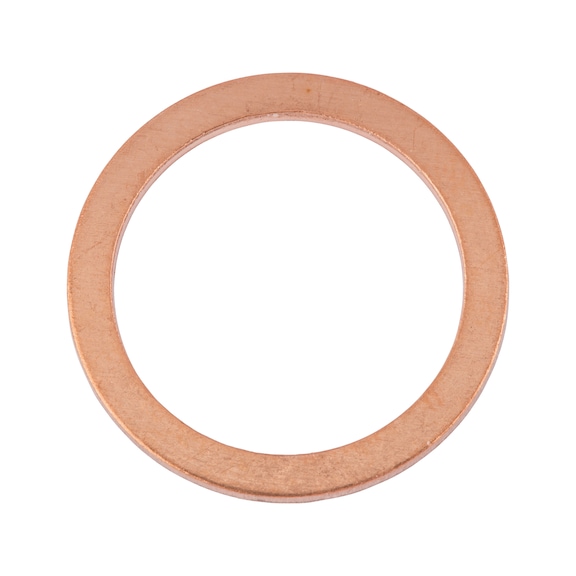

Copper Sealing Washer 6 x 10 mm | High-Quality Copper | RoHS Compliant | 300°C Temperature Resistance | by Wurth
The Copper Sealing Washer 6 x 10 mm is designed for optimal sealing performance in automotive and industrial applications. Made from high-quality copper with a plain surface finish, it ensures reliable sealing under high temperature and pressure conditions, with a maximum temperature resistance of 300°C. Ideal for engines and hydraulic systems, this washer is RoHS-compliant, making it a safe choice for environmentally conscious projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Washer 6 x 10 mm | High-Quality Copper | RoHS Compliant | 300°C Temperature Resistance | by Wurth
Brand: Wurth
SKU: 460610
Alternatively Known As: Copper sealing washer, copper gasket, sealing ring, copper crush washer
Technical Specifications
- Outer diameter (d2): 9.9 mm
- Internal diameter (d1): 6.2 mm
- Thickness (h1): 1 mm
- Nominal size: 6 x 10 mm
- Material: Copper
- Surface: Plain
- RoHS-compliant: Yes
- Form: A
- DIN: 7603
- Max. temperature resistance: 300°C
- Corresponds to original spare part number: Mercedes 007 603 006106, VW/Audi N.013 804.2
- Dimensions (H x L x W): 1mm x 10mm x 10mm
- Weight: 0.1 kg
Key Features
- Made from high-quality copper for excellent sealing performance
- Plain surface finish for reliable sealing
- RoHS-compliant ensuring environmental safety
- High temperature resistance up to 300°C
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper sealing and safety.
Applications
- Automotive: Used as sealing washers in engines and hydraulic systems
- Industrial: Sealing applications in machinery and equipment
- General: Suitable for use in high temperature and pressure environments
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances and environmental impact
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Copper Sealing Washer 6 x 10 mm is available now for immediate purchase. Ideal for automotive and industrial sealing applications.
