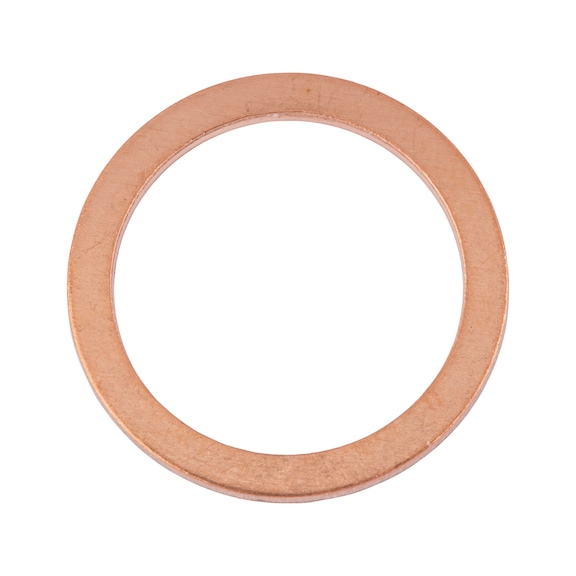

Copper Sealing Washer 8 x 12 mm | High-Quality Copper | RoHS Compliant | by Wurth
The Copper Sealing Washer 8 x 12 mm is designed for optimal sealing performance in automotive and industrial applications. Made from high-quality copper, it features a plain surface finish and is RoHS-compliant, ensuring environmental safety. With a maximum temperature resistance of 300°C, this washer is perfect for Mercedes and VW/Audi male thread applications, providing reliable sealing for fluid and gas connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Washer 8 x 12 mm | High-Quality Copper | RoHS Compliant | by Wurth
Brand: Wurth
SKU: 460812
Alternatively Known As: Copper sealing washer, copper gasket, copper crush washer, sealing ring
Technical Specifications
- Outer diameter (d2): 11.9 mm
- Internal diameter (d1): 8.2 mm
- Thickness (h1): 1 mm
- Nominal size: 8 x 12 mm
- Material: Copper
- Surface: Plain
- Form: A
- DIN standard: 7603
- Max temperature resistance: 300°C
- Suitable for male thread: 8 x 1 mm
- Corresponds to original spare part numbers: Mercedes 007 603 008103, VW/Audi N.013 830.2
- Dimensions (H x L x W): 1mm x 12mm x 12mm
- Weight: 0.1 kg
Key Features
- Made from high-quality copper for excellent sealing performance
- Plain surface finish
- RoHS-compliant ensuring environmental safety
- Form A type washer
- Suitable for male thread size 8 x 1 mm
- Max temperature resistance up to 300°C
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper sealing and fitment.
Applications
- Automotive: Suitable for Mercedes and VW/Audi male thread applications
- Industrial: Sealing elements for fluid and gas connections
- General: Used in fastening and sealing applications requiring copper washers
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances impact
- Copper is recyclable, supporting sustainable material use
Warranty Information
Standard manufacturer warranty applies.
Available Now
The Wurth Copper Sealing Washer 8 x 12 mm is available now for immediate purchase. Ideal for automotive and industrial sealing applications.
