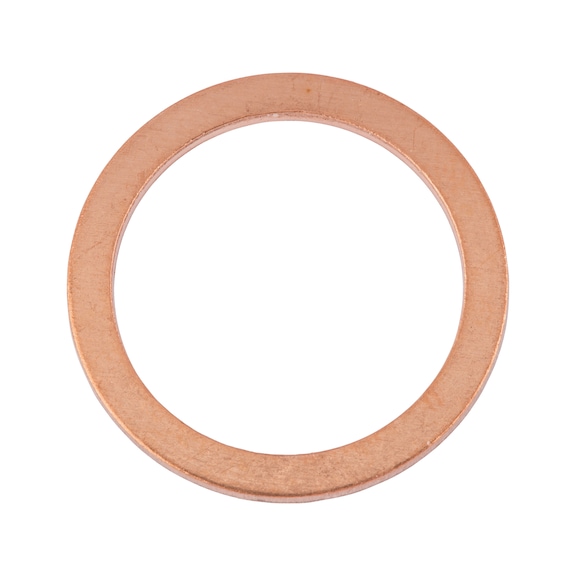

Copper Sealing Washer | DIN 7603 Form A | Max Temp 300°C | Plain Surface | by Wurth
The Copper Sealing Washer is designed for reliable sealing in automotive and industrial applications. Made from high-quality copper, it features a plain surface finish and is RoHS-compliant, ensuring safety and durability. With a maximum temperature resistance of 300°C, it's perfect for use with male threads in vehicles like Mercedes and VW/Audi, providing excellent sealing performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Washer | DIN 7603 Form A | Max Temp 300°C | Plain Surface | by Wurth
Brand: Wurth
SKU: 4601014
Alternatively Known As: Copper sealing washer, copper gasket, copper crush washer, DIN 7603 washer
Technical Specifications
- Outer diameter (d2): 13.9 mm
- Internal diameter (d1): 10.2 mm
- Thickness (h1): 1 mm
- Nominal size: 10 x 14 mm
- Material: Copper
- Surface: Plain
- Form: A
- DIN standard: 7603
- Max temperature resistance: 300°C
- Suitable for male thread: 10 x 1 mm
- Suitable for male thread (imperial): R 1/8 inch
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1mm x 14mm x 14mm
- Weight: 0.1 kg
Key Features
- Made from high-quality copper for excellent sealing
- Plain surface finish
- RoHS-compliant
- Form A according to DIN 7603
- Max temperature resistance up to 300°C
Professional Installation Requirements
- Installation by a qualified technician or mechanic is recommended to ensure proper sealing and fitment.
Applications
- Automotive: Suitable for Mercedes and VW/Audi male threads
- Industrial: Sealing applications requiring copper washers
- General: Use in fastening and sealing male threaded connections
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material ensures reduced hazardous substances
- Durable copper material promotes long service life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Wurth Copper Sealing Washer 10 x 14 mm is available for immediate purchase, ideal for automotive and industrial sealing applications.
