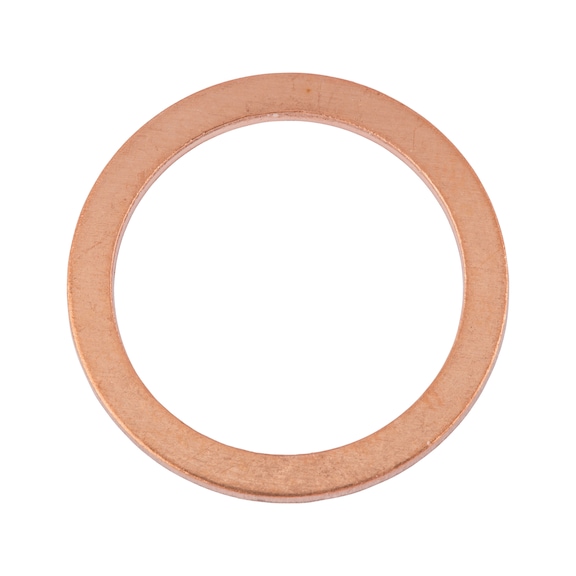

Copper Sealing Washer | High-Quality Copper | RoHS Compliant | Max Temp 300°C | by Wurth
The Copper Sealing Washer is designed for optimal sealing performance in hydraulic and pneumatic systems. Made from high-quality copper with a plain surface finish, it ensures reliable sealing in automotive, industrial machinery, and plumbing applications. With a maximum temperature resistance of 300°C and RoHS compliance, this washer is perfect for environmentally conscious projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Sealing Washer | High-Quality Copper | RoHS Compliant | Max Temp 300°C | by Wurth
Brand: Wurth
SKU: 460612
Alternatively Known As: Copper sealing washer, copper gasket, copper crush washer, sealing ring
Technical Specifications
- Outer diameter (d2): 11.9 mm
- Internal diameter (d1): 6.2 mm
- Thickness (h1): 1 mm
- Nominal size: 6 x 12 mm
- Material: Copper
- Surface: Plain
- RoHS-compliant: Yes
- Form: A
- DIN: 7603
- Max. temperature resistance: 300°C
- Dimensions (H x L x W): 1mm x 12mm x 12mm
- Weight: 0.1 kg
Key Features
- Made from high-quality copper for excellent sealing performance
- Plain surface finish for reliable sealing
- RoHS-compliant ensuring environmental safety
- Form A type according to DIN 7603 standard
- Max temperature resistance up to 300°C
Professional Installation Requirements
- Installation by a qualified technician is recommended to ensure proper sealing and safety.
Applications
- Used as sealing elements in hydraulic and pneumatic systems
- Suitable for automotive, industrial machinery, and plumbing applications
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant material reduces hazardous substances
- Durable copper material extends product life reducing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
Wurth Copper Sealing Washer 6 x 12 mm is available for immediate purchase, ideal for sealing applications in automotive and industrial equipment.
