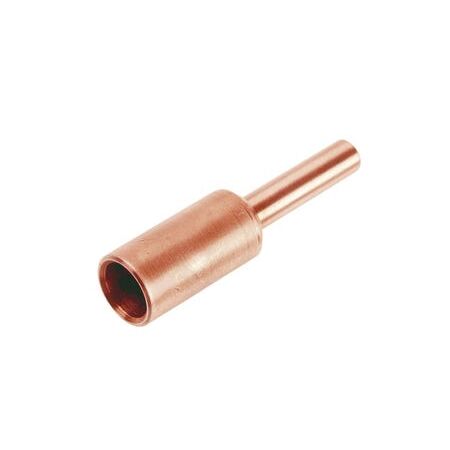

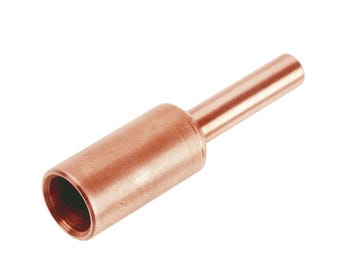

Copper Stalk 150mm² Cable 15mm Stalk Cabac
Cabac Copper Stalk features a 150mm² copper crimp barrel and a 15mm solid stalk. Ideal for terminating cable into MCCB tunnel terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper stalk lug, copper cable stalk, MCCB tunnel terminal lug, copper crimp stalk
Technical Specifications
- Nominal Conductor Size: 150 mm²
- Stalk Diameter: 15 mm
- Material: 99.95% pure, fully annealed copper
- Oxygen Content: Maximum 30 ppm
- Tensile Strength: 200 MPa
- Ductility: 40%
- Electrical Conductivity: 99.7% IACS
- Resistivity: 1.738 micro-ohm cm
- Operating Temperature: -55°C to +155°C
- Plating: Unplated copper
- Crimping Tool: CABAC HT130-C-150 copper die
- Crimping: One crimp for round conductors or two crimps for compacted conductors
- Compatible Tooling: CABAC, MSS Power, Cable Accessories, Utilux and Burndy standard tooling
- Approximate Internal Cable Entry Diameter: 16.5 mm
- Approximate Overall Length: 89 mm
- Approximate Palm Width: 30 mm
- Applicable Product Standard: AS 4325 Part 1
- Dimensions (H x L x W): 45mm x 89mm x 18.3mm
- Weight: 0.2 kg
Key Features
- Designed for terminating 150 mm² copper cable into MCCB tunnel terminals
- 15 mm solid copper stalk for clamp-type electrical equipment terminals
- Manufactured from high-conductivity, fully annealed copper
- Compatible with standard Australian hexagonal crimping tooling
- Suitable for round and compacted copper conductors
- Unplated construction for applications where bare copper is specified
- Manufactured in a range of stalk diameters and conductor sizes
Professional Installation Requirements
- Installation should be performed by a licensed electrician or suitably qualified electrical tradesperson using the specified CABAC crimping die and correct crimping procedure. De-energise the circuit before installation and verify the completed termination in accordance with the equipment manufacturer's requirements and AS 4325 Part 1.
Applications
- MCCB tunnel terminal cable termination
- Low-voltage switchboards and distribution boards
- Industrial electrical equipment with clamp terminals
- Large copper conductor terminations
- Electrical power and cable distribution installations
Standards & Compliance
- AS 4325 Part 1 for compression and mechanical connectors for electrical conductors, as specified by CABAC
Environmental Benefits
- Copper is highly recyclable at end of service life
- High-conductivity copper supports efficient electrical current transfer and can reduce connection losses
- Fully annealed construction supports reliable long-term service and may reduce replacement waste
- Durable metallic construction avoids the use of single-use plastic termination components
Warranty Information
No product-specific warranty period was identified. The product is subject to CABAC's applicable terms and conditions and guarantees under the Australian Consumer Law.
Available Now
Available through CABAC and authorised Australian electrical distributors; confirm stock and lead time for the 15 mm stalk variant, which may be manufactured to order.
