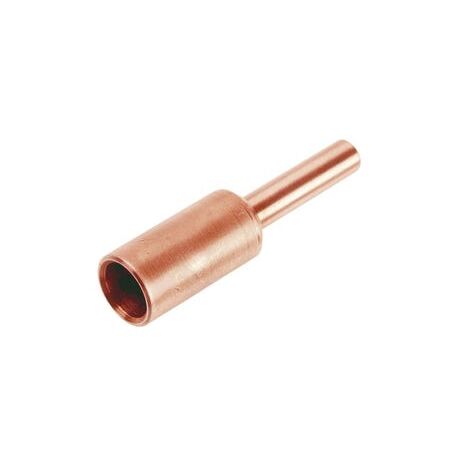

Copper Stalk 150mm² Cable 18mm Stalk Cabac

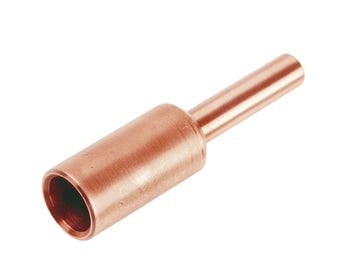

Cabac Copper Stalk features a 150mm² copper crimp barrel and a 18mm solid stalk. Ideal for terminating cable into MCCB tunnel terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper stalk lug, copper crimp stalk lug, MCCB tunnel terminal lug, CS150/18
Technical Specifications
- Conductor Size: 150mm²
- Stalk Diameter: 18mm
- Material: High-conductivity annealed copper
- Copper Purity: Approximately 99.9% or higher
- Lug Type: Copper stalk crimp lug, Type B
- Barrel Internal Diameter: Approximately 16.5mm
- Barrel Length: Approximately 45mm
- Palm Width: Approximately 30mm
- Recommended Crimp Tooling: CABAC HT130-C-150 or equivalent Australian-standard tooling
- Crimping: One crimp for round conductors; two crimps for compacted conductors
- Application: Termination into MCCB tunnel and equipment clamp terminals
- Conformant Standard: AS/NZS 4325.1 compression connector requirements
- Dimensions (H x L x W): 30mm x 89mm x 18mm
- Weight: 0.18 kg
Key Features
- Designed for 150mm² copper cable
- 18mm solid copper stalk suits compatible MCCB tunnel terminals
- High-conductivity annealed copper construction
- Suitable for electrical equipment with clamp terminals
- Compatible with standard Australian crimping tooling and dies
- Designed for reliable mechanical and electrical cable termination
Professional Installation Requirements
- Installation and crimping should be performed by a licensed electrician using the manufacturer-specified crimping tool and die, with the completed termination installed and tested in accordance with applicable wiring rules and equipment manufacturer instructions.
Applications
- Terminating 150mm² copper cable into MCCB tunnel terminals
- MCCB and circuit-breaker connections
- Switchboards and electrical distribution equipment
- Industrial electrical panels
- Large-conductor power cable terminations
Standards & Compliance
- AS/NZS 4325.1: Compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Copper is highly recyclable and can be recovered at end of service life
- Durable copper construction can support long service life and reduce replacement waste
- High electrical conductivity helps minimise connection losses when correctly installed
Warranty Information
Covered by CABAC's applicable warranty terms and guarantees under Australian Consumer Law. No fixed product-specific warranty period was identified for this copper stalk lug; warranty claims are subject to correct selection, installation and use.
Available Now
Available through CABAC and authorised Australian electrical distributors, subject to distributor stock.
