Copper Stalk 150mm² 12mm Diameter | 99.95% Pure Copper | Crimped for Australian Tooling by Cabac

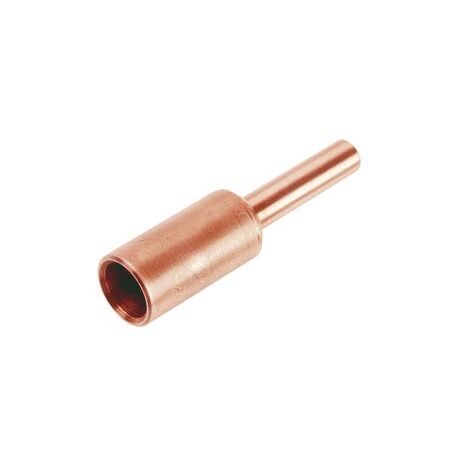

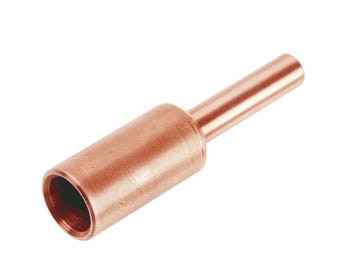

The Cabac Copper Stalk 150mm2 12mm Stalk is a high-quality copper lug designed for secure cable terminations on copper overhead conductors and electrical equipment clamp terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Stalk 150mm2 12mm Stalk
Brand: Cabac
SKU: CS150/12
Alternatively Known As: Copper Cable Lug, Copper Stalk Lug, Electrical Copper Terminal, Copper Crimp Lug
Technical Specifications
- Nominal Conductor Size: 150 mm²
- Stalk Diameter: 12 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m. max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55 to 155 °C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Not supplied plated
- Dimensions (H x L x W): 12mm x 50mm x 12mm
- Weight: 0.5 kg
Key Features
- Crimped with standard hexagon dies compatible with Australian tooling
- Manufactured from 99.95% pure copper with 30 p.p.m. max oxygen content
- Fully annealed metal state for optimal ductility
- Tooling interchangeable with Cable Accessories, Utilux, and Burndy
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper crimping and secure connections.
Applications
- Attach cable terminations to copper overhead conductors
- Suitable for electrical equipment clamp terminals
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS4325 Part 1 Australia
Environmental Benefits
- Made from high-purity copper which is recyclable and sustainable
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The Cabac Copper Stalk 150mm2 12mm Stalk is available for immediate purchase, ideal for electrical power connectivity and cable termination applications.
