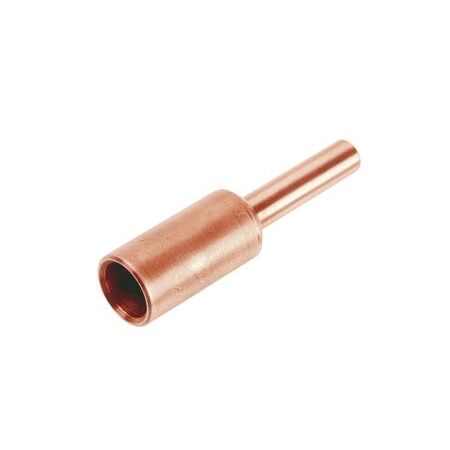

Copper Stalk 185mm² Cable 15mm Stalk Cabac

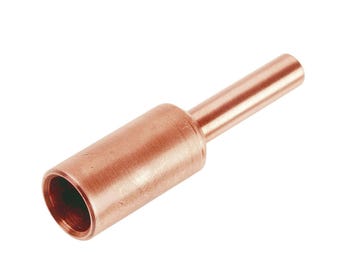

Cabac Copper Stalk features a 185mm² copper crimp barrel and a 15mm solid stalk. Ideal for terminating cable into MCCB tunnel terminals.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Copper stalk lug, copper crimp stalk, 185 mm² copper cable termination, MCCB tunnel terminal lug
Technical Specifications
- Manufacturer Part Number: CS185/16
- Nominal Conductor Size: 185 mm²
- Stalk Diameter: 16 mm
- Barrel Internal Diameter: 18.5 mm
- Overall Length: 92 mm
- Palm Width: 45 mm
- Barrel Diameter: 32 mm
- Material: 99.95% pure copper
- Plating: Unplated
- Copper Conductivity: 99.7% IACS
- Tensile Strength: 200 MPa
- Operating Temperature: -55°C to 155°C
- Crimping: Standard hexagonal crimp dies
- Recommended Crimp Die: HT130-C-185
- Number of Crimps: 1 for round conductors; 2 for compacted conductors
- Compatibility: CABAC, MSS Power, Cable Accessories, Utilux and Burndy tooling
- Compliance Reference: AS/NZS 4325.1 / AS 4325 Part 1
- Product Identification Note: The supplied source title states 15 mm stalk; CABAC's current official product listing and datasheet identify the 185 mm² variant as CS185/16 with a 16 mm stalk.
- Dimensions (H x L x W): 32mm x 92mm x 45mm
- Weight: 0.32 kg
Key Features
- Designed for terminating 185 mm² copper cable
- Suitable for MCCB tunnel terminals and electrical equipment clamp terminals
- Manufactured from high-conductivity, fully annealed copper
- Crimped using standard hexagonal tooling
- Tooling is dimensionally compatible with common Australian crimp systems
- Unplated copper construction
- Available as a single lug
Professional Installation Requirements
- Installation should be performed by a licensed electrician or suitably qualified electrical tradesperson using the specified crimp die and following the cable and equipment manufacturer's installation requirements. De-energise and isolate the electrical system before installation.
Applications
- Terminating 185 mm² copper power cable into MCCB tunnel terminals
- Electrical equipment clamp terminals
- Low-voltage switchboards and power distribution equipment
- Industrial electrical and utility cable terminations
Standards & Compliance
- AS/NZS 4325.1: Compression and mechanical connectors for power cables with copper or aluminium conductors
Environmental Benefits
- Copper is highly recyclable and can be recovered at end of product life
- High-conductivity copper supports efficient electrical connections and reduced connection losses
- Durable copper construction can reduce replacement frequency and associated material waste
Warranty Information
CABAC's published warranty terms generally provide repair or replacement for defective goods for 12 months from the date of purchase where no different product warranty is stated, subject to correct use and excluding misuse, neglect and incorrect installation. Australian Consumer Law guarantees also apply.
Available Now
Available through CABAC and authorised Australian electrical distributors; the current CABAC listing advises customers to contact the company regarding stock availability or restock timing.
