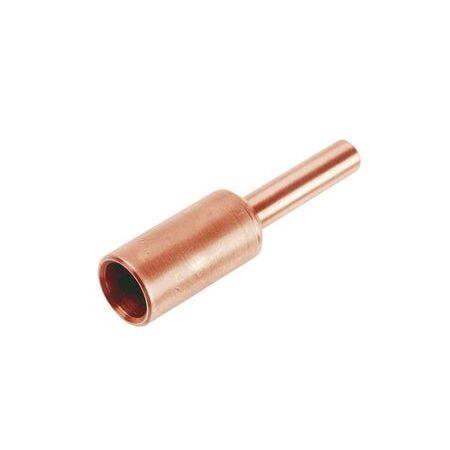

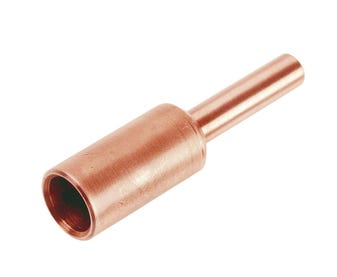

Copper Stalk 240mm² Cable 10mm Stalk Cabac

BRAND: CABAC
SKU: CS240/10
$137.70 List price: $183.60
+ −
30 Days Return Electricians Unlock Trade Access
Cabac Copper Stalk features a 240mm² copper crimp barrel and a 10mm solid stalk. Ideal for terminating cable into MCCB tunnel terminals.

Alternatively Known As: Copper stalk lug, copper cable stalk, MCCB tunnel terminal lug, copper crimp stalk

Technical Specifications
  • Nominal Conductor Size: 240mm²
  • Stalk Diameter: 10mm solid stalk
  • Material: 99.95% pure, fully annealed copper
  • Conductivity: 99.7% IACS
  • Barrel Internal Diameter: Approximately 21.5mm, based on the CABAC 240mm² stalk-lug range
  • Operating Temperature: -55°C to 155°C
  • Crimping: Hex crimp using equivalent 240mm² copper lug tooling
  • Recommended Crimp Die: HT130-C-240 or equivalent 240mm² copper die
  • Finish: Unplated copper
  • Compliance: Designed and manufactured to applicable AS/NZS 4325.1 requirements
  • Dimensions (H x L x W): 50mm x 103mm x 38mm
  • Weight: 0.2 kg
Key Features
  • 240mm² copper crimp barrel for large power cables
  • 10mm solid stalk for connection to MCCB tunnel terminals
  • Suitable for electrical equipment clamp terminals and switchgear connections
  • Manufactured from high-conductivity annealed copper
  • Compatible with standard Australian hexagonal crimp tooling
  • Single-piece component supplied individually
Professional Installation Requirements
  • Installation and crimping should be performed by a licensed electrician using the correct 240mm² crimp die and manufacturer-recommended crimp sequence. Verify conductor compatibility, insertion depth, crimp quality and terminal torque before energising.
Applications
  • Terminating 240mm² copper cable into MCCB tunnel terminals
  • MCCB and switchgear connections
  • Electrical equipment clamp terminals
  • Commercial and industrial low-voltage power distribution
  • Large conductor cable termination assemblies
Standards & Compliance
  • AS/NZS 4325.1:1995 - Compression and mechanical connectors for power cables with copper or aluminium conductors; CABAC identifies its copper stalk lug range as designed to the applicable requirements of AS/NZS 4325.1.
Environmental Benefits
  • Copper is highly recyclable and can be recovered at end of product life
  • High-conductivity copper supports low-resistance electrical connections and reduces connection losses
  • Fully annealed construction supports reliable long-term service and can reduce replacement waste
Warranty Information

CABAC’s general warranty provides repair or replacement for defective goods for 12 months from the date of purchase, subject to correct installation, use and the applicable CABAC warranty terms. Australian Consumer Law rights also apply.

Available Now

Available through CABAC and authorised Australian electrical distributors; the 240mm², 10mm stalk configuration may be supplied as a special or made-to-order variant.
