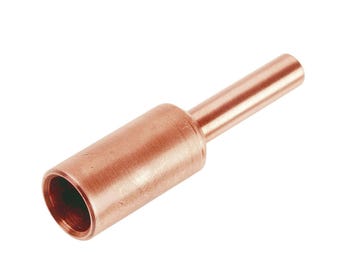

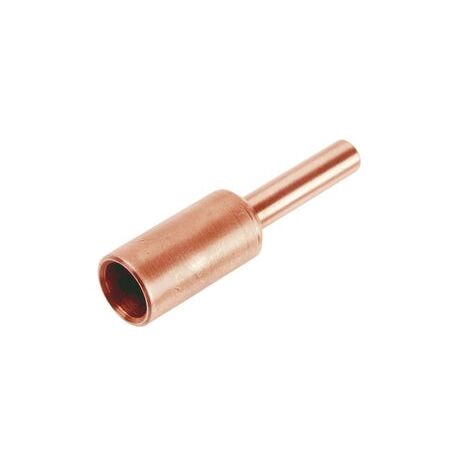

Copper Stalk 35mm² 10mm Diameter | 99.95% Pure Copper | Crimped for Australian Tooling by Cabac
The Cabac Copper Stalk 35mm2 10mm Stalk is a high-quality copper lug designed for secure electrical connections, compatible with standard Australian tooling and suitable for various electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Stalk 35mm2 10mmStalk
Brand: Cabac
SKU: CS35/10
Alternatively Known As: Copper lug, Copper cable lug, Electrical copper stalk, Copper terminal lug, Crimp copper lug
Technical Specifications
- Nominal Conductor Size: 35mm²
- Stalk Diameter: 10mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m. max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55 to 155°C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Plating: Not supplied plated
- Dimensions (H x L x W): 35mm x 50mm x 10mm
- Weight: 0.1 kg
Key Features
- Crimped with standard hexagon dies compatible with Australian tooling
- Manufactured from 99.95% pure copper with 30 p.p.m. max oxygen content
- Fully annealed metal state for optimal ductility
- Interchangeable tooling with Cable Accessories, Utilux, and Burndy
- Suitable for 35mm² conductor size with 10mm stalk diameter
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper crimping and secure electrical connections.
Applications
- Electrical equipment clamp terminals
- Cable terminations to copper overhead conductors
- Power connectivity in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS4325 Part 1 Australia
Environmental Benefits
- Made from high-purity copper which is fully recyclable
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty against defects applies.
Available Now
The Cabac Copper Stalk 35mm2 10mm Stalk is available for immediate purchase, ideal for electrical power connectivity and cable termination applications.
