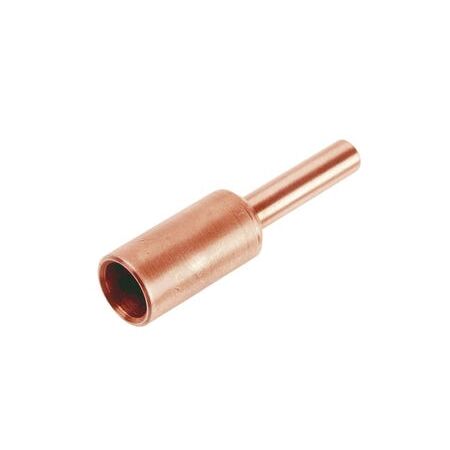

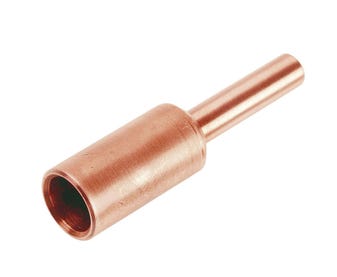

Copper Stalk 35mm² 12mm Diameter | 99.95% Pure Copper | Crimped for Australian Tooling by Cabac
The Cabac Copper Stalk 35mm2 12mm Stalk is a high-quality copper lug designed for secure electrical connections, compatible with standard Australian tooling and suitable for various electrical applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Stalk 35mm2 12mmStalk
Brand: Cabac
SKU: CS35/12
Alternatively Known As: Copper lug, Copper cable lug, Electrical copper stalk, Copper terminal lug
Technical Specifications
- Nominal Conductor Size: 35 mm²
- Stalk Diameter: 12 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55 to 155 °C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Plating: Not supplied plated
- Dimensions (H x L x W): 35mm x 50mm x 12mm
- Weight: 0.1 kg
Key Features
- Crimped with standard hexagon dies compatible with Australian tooling
- Manufactured from 99.95% pure copper with low oxygen content
- Fully annealed for optimal ductility and tensile strength
- Tooling interchangeable with Cable Accessories, Utilux, and Burndy
Professional Installation Requirements
- Installation should be performed by a qualified electrician using appropriate crimping tools to ensure secure and compliant connections.
Applications
- Electrical equipment clamp terminals
- Cable terminations to copper overhead conductors
- Power connectivity in electrical installations
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS4325 Part 1 Australia
Environmental Benefits
- Made from high-purity copper which is fully recyclable
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Warranty details available upon request from the manufacturer.
Available Now
The Cabac Copper Stalk 35mm2 12mm Stalk is available for immediate purchase, ideal for electrical power connectivity and cable termination applications.
