Copper Stalk 50mm² 8mm Diameter | 99.95% Pure Copper | Ductile & High Conductivity by Cabac

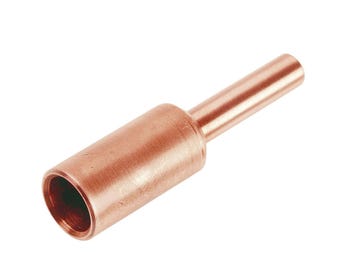

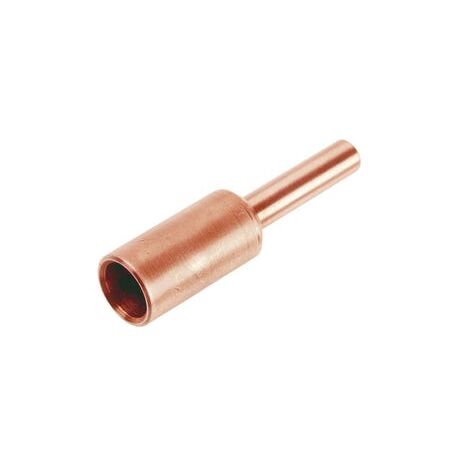

The Cabac Copper Stalk 50mm2 8mm Stalk is a high-quality copper lug designed for secure cable terminations on copper overhead conductors and electrical equipment clamp terminals, compatible with standard Australian tooling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Stalk 50mm2 8mm Stalk
Brand: Cabac
SKU: CS50/8
Alternatively Known As: Copper Cable Lug, Copper Stalk Lug, Electrical Copper Terminal, Copper Crimp Lug
Technical Specifications
- Nominal Conductor Size: 50 mm²
- Stalk Diameter: 8 mm
- Conductive Material: Copper 99.95% pure
- Oxygen Content: 30 p.p.m. max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature: -55 to 155 °C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Not supplied plated
- Dimensions (H x L x W): 50mm x 50mm x 8mm
- Weight: 0.1 kg
Key Features
- Crimped with standard hexagon dies compatible with Australian tooling
- Manufactured from 99.95% pure copper with 30 p.p.m. max oxygen content
- Fully annealed metal state for ductility
- Operating temperature range from -55 to 155°C
- Tooling interchangeable with Cable Accessories, Utilux, and Burndy
Professional Installation Requirements
- Professional installation by a qualified electrician or technician is recommended to ensure proper crimping and secure connections.
Applications
- Attach cable terminations to copper overhead conductors
- Suitable for electrical equipment clamp terminals
Standards & Compliance
- AS/NZS 4325 Part 1 – Copper Conductors and Accessories
Environmental Benefits
- Made from high-purity copper which is recyclable and sustainable
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Cabac for details.
Available Now
The Cabac Copper Stalk 50mm2 8mm Stalk is available for immediate purchase, ideal for electrical power connectivity and cable termination applications.
