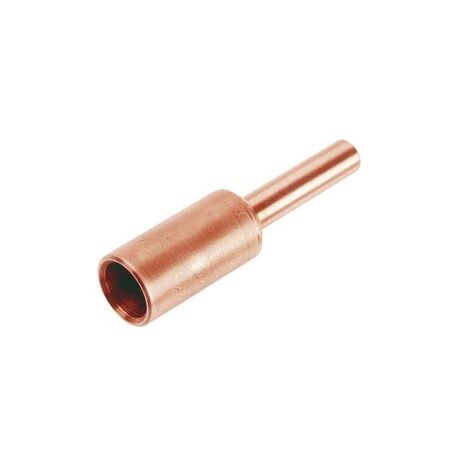

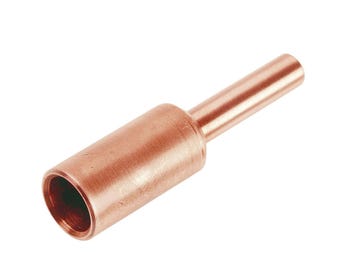

Copper Stalk Adaptor 95mm² 11mm Stalk Cabac

BRAND: CABAC
SKU: CS95/11
$70.90 List price: $94.60
+ −
30 Days Return Electricians Unlock Trade Access
Cabac copper stalk adaptor features 95mm² lug size, 11mm stalk diameter, and plain copper build. Ideal for fitting lugs into tunnel breaker terminals.

Alternatively Known As: Copper Stalk Adaptor, Copper Breaker Terminal Adaptor, Copper Stalk Lug Adaptor

Technical Specifications
  • Conductor/Lug Size: 95 mm²
  • Stalk Diameter: 11 mm
  • Material: Plain high-conductivity copper
  • Application: Tunnel breaker terminals
  • Product Type: Copper electrical terminal adaptor
  • Installation Method: Crimped or mechanically secured in accordance with manufacturer instructions
  • Applicable Connector Standard: AS/NZS 4325.1, where product-specific certification applies
  • Dimensions (H x L x W): 25mm x 80mm x 25mm
  • Weight: 0.18 kg
Key Features
  • Designed for fitting 95 mm² lugs into tunnel breaker terminals
  • 11 mm copper stalk for compatibility with suitable switchgear terminals
  • Plain copper construction for high electrical conductivity
  • Suitable for electrical distribution and switchgear applications
  • Compact adaptor format for confined terminal spaces
Professional Installation Requirements
  • Installation should be performed by a suitably qualified electrician using compatible tooling and following the manufacturer’s instructions, applicable switchgear requirements and AS/NZS 4325.1 where relevant.
Applications
  • Tunnel breaker terminals
  • Switchgear and circuit-breaker connections
  • Electrical distribution equipment
  • Industrial cable termination assemblies
  • Low-voltage power cable connections
Standards & Compliance
  • AS/NZS 4325.1 for compression-type electrical connectors and cable terminations, where applicable to the completed connection
Environmental Benefits
  • Copper is highly recyclable and can be recovered at the end of product life
  • Durable copper construction can reduce replacement frequency and installation waste
  • High conductivity supports efficient electrical power transfer
Warranty Information

CABAC standard warranty is 12 months from the date of purchase unless a different warranty is stated on the product. Warranty excludes misuse, neglect and incorrect installation, subject to Australian Consumer Law.

Available Now

Available through CABAC and authorised Australian electrical distributors; confirm current stock with the distributor.
