Copper Switchgear Connector 150mm | 12mm Compatibility | Zinc Plated Steel Collar | Secure Clamping by Cabac

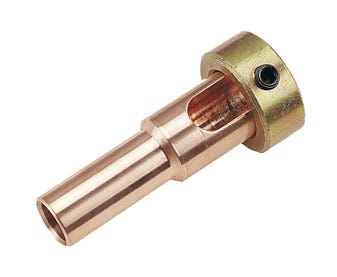

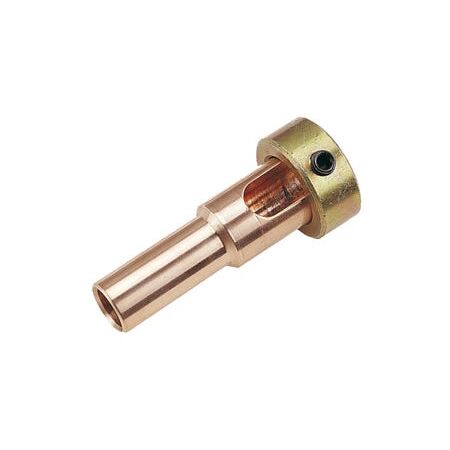

The Cabac Copper Switchgear Connector 150mm is designed for secure termination of copper conductors onto 12mm copper switchgear stems, featuring a copper lug and zinc plated steel clamping collar with Allen head grub screw.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Switchgear Connector 150mm
Brand: Cabac
SKU: CSC150/12K
Alternatively Known As: Copper lug connector, Copper switchgear lug, Copper conductor connector, Electrical copper terminal lug
Technical Specifications
- Length: 150mm
- Compatible with 12mm copper switchgear stems
- Copper lug for excellent conductivity
- Steel clamping collar with zinc plating
- Allen head grub screw for secure clamping
- Dimensions (H x L x W): 15mm x 150mm x 20mm
- Weight: 0.1 kg
Key Features
- Designed for terminating copper conductors onto a 12mm copper switchgear stem
- Consists of a copper lug and a steel clamping collar
- Clamping collar incorporates an Allen head grub screw
- Clamping collar made from zinc plated steel for corrosion resistance
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure proper termination and compliance with electrical standards.
Applications
- Electrical installations requiring termination of copper conductors
- Switchgear assemblies with 12mm copper stems
- Industrial and commercial electrical power connectivity
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Durable materials reduce the need for frequent replacements, minimizing waste
- Zinc plating on steel collar provides corrosion resistance, extending product life
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Cabac Copper Switchgear Connector 150mm is available now for immediate purchase. Ideal for electrical power connectivity and switchgear applications.
