Copper Switchgear Connector 300mm | 99.95% Pure Copper | Steel Clamping Collar | -55 to 155 °C by Cabac

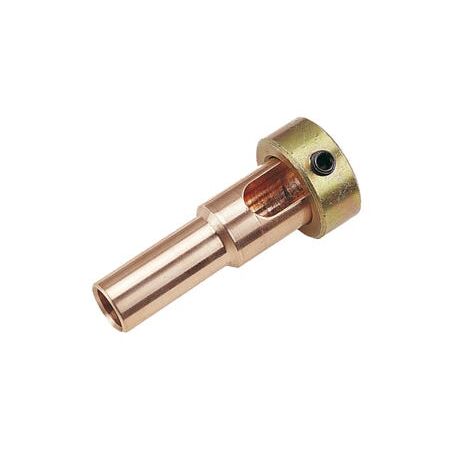

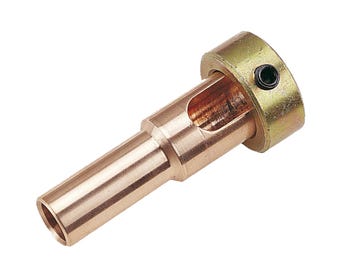

The Cabac Copper Switchgear Connector 300mm is designed for terminating copper conductors onto a 12mm copper switchgear stem, featuring a high conductivity copper lug and zinc plated steel clamping collar for reliable electrical connections.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Switchgear Connector 300mm
Brand: Cabac
SKU: CSC300/12K
Alternatively Known As: Copper lug connector, Copper switchgear lug, Copper conductor connector, Electrical copper connector, Switchgear copper terminal
Technical Specifications
- Nominal Conductor Size: 300 mm²
- Stranding Number/Diameter: 61 strands of 2.52 mm
- Switchgear Stem Diameter: 12 mm
- Conductive Material: 99.95% pure copper
- Oxygen Content: 30 ppm max
- Tensile Strength: 200 MPa
- Ductile Rating: 40%
- Final Metal State: Fully annealed
- Operating Temperature Range: -55 to 155 °C
- Total Conductivity: 99.7% IACS
- Total Resistivity: 1.738 micro-ohm cm
- Plating: Not supplied plated
- Tooling: Interchangeable with CABAC, Utilux, and Burndy
- Dimensions (H x L x W): 20mm x 300mm x 20mm
- Weight: 0.5 kg
Key Features
- Copper lug made from 99.9%+ high conductivity copper
- Steel clamping collar with Allen head grub screw for secure connection
- Clamping collar made from zinc plated steel with cut to prevent eddy currents
- Compatible with standard Australian tooling for crimping
- Designed to Australian dimensions
Professional Installation Requirements
- Installation should be performed by a qualified electrician using standard Australian tooling to ensure secure and compliant connections.
Applications
- Electrical power connectivity for terminating copper conductors onto 12mm copper switchgear stems
- Industrial and commercial electrical installations requiring secure copper conductor connections
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS4325 Part 1 Australia
Environmental Benefits
- High conductivity copper reduces energy loss and improves electrical efficiency
- Durable materials extend product lifespan, reducing waste
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The Cabac Copper Switchgear Connector 300mm is available for immediate purchase, ideal for electrical power connectivity applications requiring reliable copper conductor termination.
