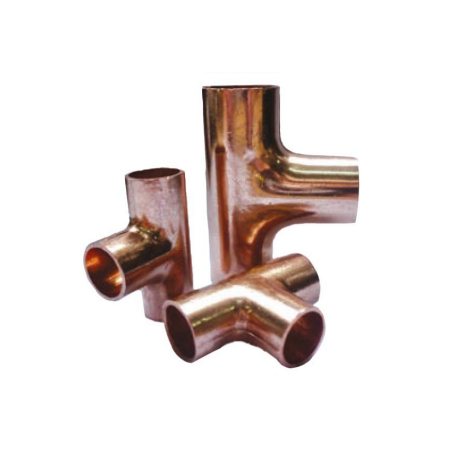

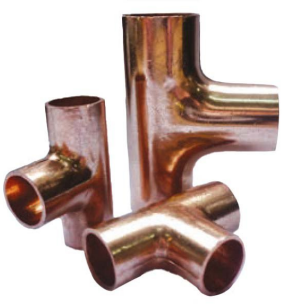

5/16 Inch Copper Tee Fitting | High-Grade Copper | ISO/AS 5149.2 Compliant | R-410A & CO2 Rated | by Aspen Pumps
The 5/16 Inch Copper Tee Fitting is designed for HVAC refrigeration systems, featuring high-grade copper construction and compliance with ISO/AS 5149.2 standards. Rated for CO2 at 60 Bar and R-410A refrigerants, this fitting ensures reliable performance in high-pressure applications, making it ideal for both commercial and residential air conditioning installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: 5/16 Inch Copper Tee Fitting | High-Grade Copper | ISO/AS 5149.2 Compliant | R-410A & CO2 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: 106-050505
Alternatively Known As: Copper Tee Fitting, Refrigeration Copper Tee, HVAC Copper Tee, 5/16 Inch Copper Tee
Technical Specifications
- Inner Diameter: 5/16 inch
- Pressure Rating: CO2 60 Bar, R-410A compatible
- Manufactured to exceed ISO/AS 5149.2 standards
- Material: High-grade copper
- Silver solder (15%) recommended for brazing in high pressure applications
- Burst tested after brazing to ensure reliability
- Dimensions (H x L x W): 20mm x 20mm x 20mm
- Weight: 0.1 kg
Key Features
- Designed and manufactured to exceed ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A refrigerants
- Manufactured in ISO9001 accredited facility with rigorous QA including batch verification burst testing
- Marked fittings for safety with R-410A and HP-60 ratings
- Designed to reduce stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology, using 15% silver solder for brazing in high pressure systems.
Applications
- HVAC refrigeration systems
- High pressure refrigerant piping
- Commercial and residential air conditioning installations
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- High-quality manufacturing reduces risk of refrigerant leaks, minimizing environmental impact
- Durable design extends system life, reducing waste and resource consumption
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Pumps SKY Copper Tee Fitting 5/16 ID is available for immediate purchase, ideal for HVAC and refrigeration system installations.
