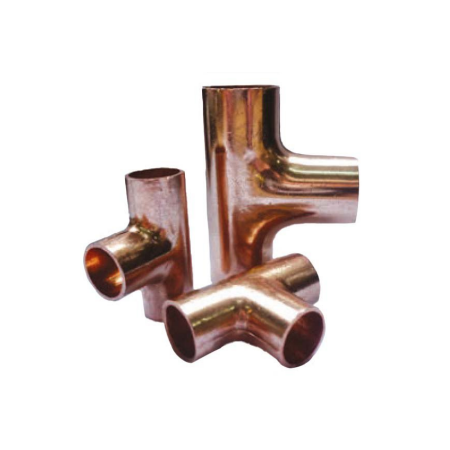

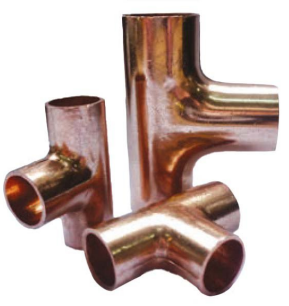

Copper Tee Fitting | High Pressure Rated for CO2 & R-410A | ISO9001 Certified | by Aspen Pumps
The Copper Tee Fitting is designed for high pressure refrigeration systems, compatible with CO2 60 Bar and R-410A refrigerants. Manufactured under ISO9001 standards, it ensures reliability with burst testing and is ideal for HVAC installations. This fitting minimizes refrigerant leakage, making it an environmentally friendly choice for industrial and commercial applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Tee Fitting | High Pressure Rated for CO2 & R-410A | ISO9001 Certified | by Aspen Pumps
Brand: Aspen Pumps
SKU: 106-222222-HP60
Alternatively Known As: Copper Tee Fitting, High Pressure Copper Tee, SKY Copper Fitting, Refrigeration Copper Tee
Technical Specifications
- Compatible with CO2 60 Bar and R-410A refrigerants
- Exceeds ISO/AS 5149.2 standards, CE and UL certified
- Manufactured under ISO9001 quality management system
- Burst tested after brazing to ensure reliability
- Recommended use of 15% silver solder for brazing in high pressure applications
- Dimensions (H x L x W): 35mm x 35mm x 35mm
- Weight: 0.2 kg
Key Features
- Rated for CO2 60 Bar and R-410A refrigerants
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Manufactured in an ISO9001 accredited facility with rigorous QA including batch verification and burst testing
- Marked fittings for safety with R-410A and HP-60 ratings
- Designed to remove stress and fatigue focus points
Professional Installation Requirements
- Installation should be performed by suitably qualified tradespeople following AS HB40 methodology, using 15% silver solder for brazing and ensuring mechanical and thermal stress avoidance.
Applications
- Refrigeration systems requiring high pressure copper fittings
- HVAC installations using R-410A refrigerant
- Industrial and commercial refrigeration piping
Standards & Compliance
- Complies with AS/NZS 5149.2 Refrigeration systems and heat pumps - Safety and environmental requirements
Environmental Benefits
- High durability reduces the need for frequent replacements, minimizing waste
- Designed to prevent refrigerant leakage, protecting the environment from harmful emissions
Warranty Information
Warranty details available upon request from Aspen Pumps, typically covering manufacturing defects.
Available Now
The Aspen Pumps SKY Copper Tee Fitting 1-3/8 ID HP60 is available for immediate purchase, ideal for high pressure refrigeration and HVAC system installations.
