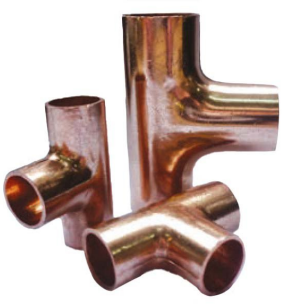

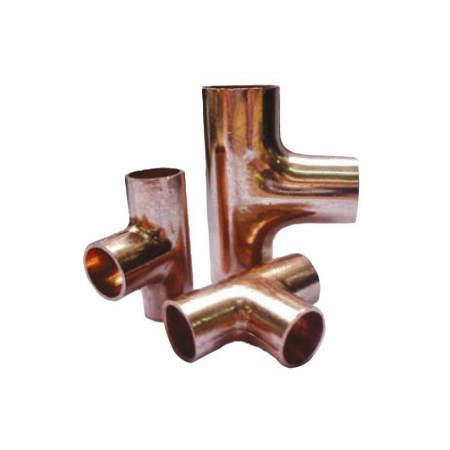

Copper Tee Fitting | ISO/AS 5149.2 Compliant | R-410A & CO2 Rated | by Aspen Pumps
The Copper Tee Fitting is designed for high-pressure refrigeration systems, compliant with ISO/AS 5149.2 standards and suitable for R-410A and CO2 refrigerants. Manufactured in an ISO9001 accredited facility, it ensures safety and reliability in HVAC applications, making it ideal for industrial and commercial refrigeration piping systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper Tee Fitting | ISO/AS 5149.2 Compliant | R-410A & CO2 Rated | by Aspen Pumps
Brand: Aspen Pumps
SKU: 106-161616
Alternatively Known As: Copper Tee Fitting, Refrigeration Copper Tee, HVAC Copper Tee, SKY Copper Fitting
Technical Specifications
- Complies with ISO/AS 5149.2 standards
- Rated for CO2 60 Bar and R-410A refrigerants
- Manufactured under ISO9001 quality management system
- Passed batch verification and burst testing
- Recommended use of 15% silver solder for brazing in high pressure applications
- Installation should follow AS HB40 guidelines
- Dimensions (H x L x W): 50mm x 50mm x 50mm
- Weight: 0.2 kg
Key Features
- Designed, manufactured, and tested to exceed ISO/AS 5149.2 standards
- Suitable for CO2 60 Bar and R-410A refrigerants
- Manufactured in ISO9001 accredited facility with rigorous QA including batch verification and burst testing
- Marked for R-410A and HP-60 rating for safety
- Designed to reduce stress and fatigue focus points
Professional Installation Requirements
- Installation must be performed by suitably qualified tradespeople following AS HB40 methodology, using recommended brazing techniques and ensuring mechanical and thermal stress avoidance.
Applications
- Refrigeration systems requiring high pressure copper fittings
- HVAC installations using R-410A and CO2 refrigerants
- Industrial and commercial refrigeration piping systems
Standards & Compliance
- AS/NZS 5149.2 – Refrigerating systems and heat pumps – Safety and environmental requirements
Environmental Benefits
- High durability reduces the need for frequent replacements, minimizing waste
- Designed to prevent refrigerant leakage, protecting the environment from harmful emissions
Warranty Information
Warranty details available upon request from Aspen Pumps; typically includes coverage against manufacturing defects.
Available Now
The Aspen Pumps SKY Copper Tee fitting is available for immediate purchase, ideal for refrigeration and HVAC high-pressure copper piping applications.
