Copper XLPE PVC Circular Cable 120mm | 0.6/1 kV Rated | XLPE Insulation & PVC Sheath | @M of 100 | by Electra Cables
Copper XLPE PVC Circular Cable 120mm is designed for reliable power distribution with a 0.6/1 kV rating. Featuring high conductivity plain annealed copper and durable XLPE insulation, this single core cable is perfect for both underground and above ground installations. Ideal for commercial and industrial applications, it ensures superior electrical performance and mechanical protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper XLPE PVC Circular Cable 120mm | 0.6/1 kV Rated | XLPE Insulation & PVC Sheath | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: XLPE11200-100BK
Alternatively Known As: 120mm XLPE Cable, 120mm Single Core Power Cable, 120mm Copper Cable, XLPE11200-100BK
Technical Specifications

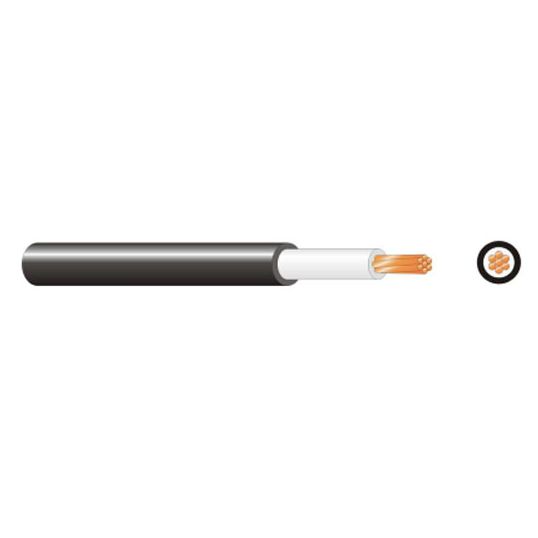

- Conductor: Plain annealed copper, circular stranded
- Insulation: Cross-linked polyethylene (XLPE)
- Sheath: Polyvinyl chloride (PVC)
- Core: Single core
- Nominal Area: 120mm²
- Rated Voltage: 0.6/1kV
- Operating Temperature: -25°C to +90°C
- Standard Length: 100m
- Colour: Black
- Dimensions (H x L x W): 22mm x 1000mm x 22mm
- Weight: 4.5 kg
Key Features
- High conductivity plain annealed copper conductor
- XLPE insulation for superior electrical and thermal performance
- Durable PVC sheath for mechanical protection and chemical resistance
- Single core circular design for easy installation
- Rated voltage: 0.6/1kV
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules and local regulations.
Applications
- Power distribution in commercial and industrial installations
- Underground and above ground electrical cabling
- Suitable for fixed wiring in switchboards, control panels, and power circuits
Standards & Compliance
- Complies with AS/NZS 5000.1 for power cables with extruded insulation and low voltage
Environmental Benefits
- Long service life reduces replacement frequency and waste
- Low smoke and halogen-free insulation options available for reduced environmental impact
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for commercial and industrial power distribution, switchboards, and fixed wiring applications.
