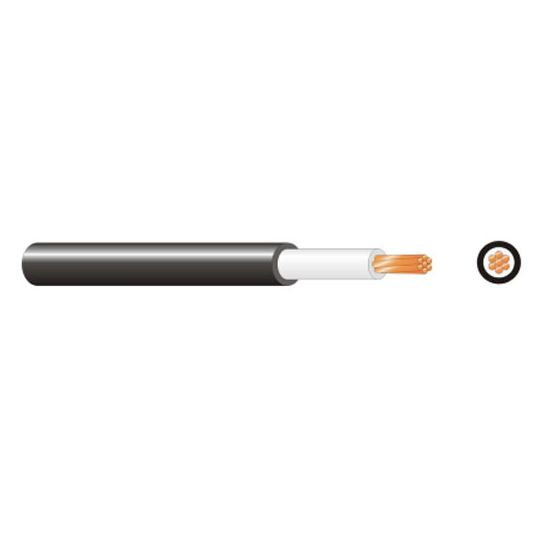

Copper XLPE PVC Circular Cable 150mm | 0.6/1 kV Rated | Single Core Design | Durable PVC Sheath | @M of 100 | by Electra Cables
Copper XLPE PVC Circular Cable 150mm is designed for high current capacity with its 150mm² single core copper conductor. Featuring XLPE insulation for superior electrical performance and a durable PVC sheath for mechanical protection, this cable is ideal for power distribution in commercial and industrial settings. Rated for 0.6/1kV applications, it ensures reliable performance in switchboards and fixed wiring.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper XLPE PVC Circular Cable 150mm | 0.6/1 kV Rated | Single Core Design | Durable PVC Sheath | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: XLPE11500-100BK
Alternatively Known As: 150mm XLPE Cable, 150mm Single Core Power Cable, 150mm² Copper Cable, XLPE11500-100BK, 0.6/1kV Power Cable
Technical Specifications
- Conductor: Plain annealed copper, 150mm²
- Insulation: Cross-linked Polyethylene (XLPE)
- Sheath: Polyvinyl Chloride (PVC)
- Voltage Rating: 0.6/1kV
- Core: Single core
- Cable Type: Circular
- Operating Temperature: -15°C to +90°C
- Flame Retardant: Yes
- Standard Length: 100m
- Dimensions (H x L x W): 22mm x 1000mm x 22mm
- Weight: 2.1 kg
Key Features
- 150mm² single core copper conductor for high current capacity
- XLPE insulation for superior electrical and thermal performance
- Durable PVC sheath for mechanical protection and chemical resistance
- Rated for 0.6/1kV voltage applications
- Circular cable design for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Power distribution in commercial and industrial installations
- Underground and above ground installations
- Suitable for use in switchboards, control panels, and fixed wiring
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 5000.1 – Electric cables for working voltages up to and including 0.6/1kV
Environmental Benefits
- XLPE insulation is halogen-free, reducing toxic emissions in case of fire
- Long service life reduces the need for frequent replacements
- Recyclable copper conductor
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for commercial and industrial power distribution, switchboards, and fixed wiring applications.
