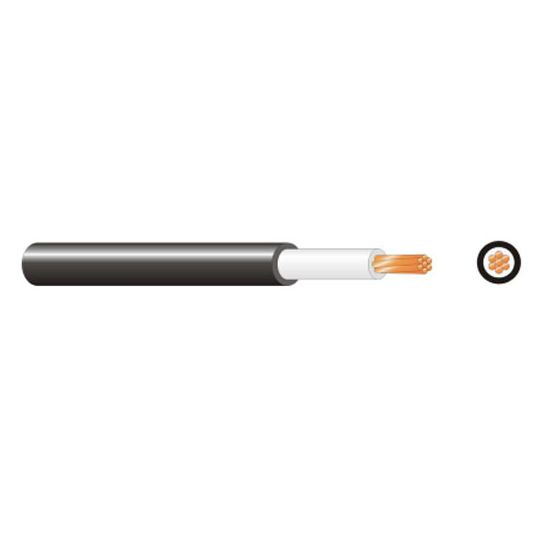

Copper XLPE PVC Circular Cable 185mm | 0.6/1 kV Rated | Single Core Design | Durable PVC Sheath | @M of 100 | by Electra Cables
Copper XLPE PVC Circular Cable 185mm is designed for high current capacity with its 185mm² single core copper conductor. Featuring XLPE insulation for superior electrical performance and a durable PVC sheath for mechanical protection, this cable is ideal for power distribution in commercial and industrial applications. Rated for 0.6/1kV, it ensures reliable operation in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper XLPE PVC Circular Cable 185mm | 0.6/1 kV Rated | Single Core Design | Durable PVC Sheath | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: XLPE11850-100BL
Alternatively Known As: 185mm XLPE Cable, 185mm Single Core Power Cable, 185mm Copper Cable, XLPE11850-100BL
Technical Specifications
- Conductor: Plain annealed copper, circular stranded
- Cross-sectional area: 185mm²
- Insulation: XLPE (Cross-linked Polyethylene)
- Sheath: PVC (Polyvinyl Chloride)
- Voltage rating: 0.6/1kV
- Core: Single core
- Operating temperature: -15°C to +90°C
- Standard length: 100m
- Colour: Black
- Dimensions (H x L x W): 28mm x 1000mm x 28mm
- Weight: 2.2 kg
Key Features
- 185mm² single core copper conductor for high current capacity
- XLPE insulation for superior electrical and thermal performance
- Durable PVC sheath for mechanical protection and chemical resistance
- Rated for 0.6/1kV voltage applications
- Circular cable design for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules and local regulations.
Applications
- Power distribution in commercial and industrial installations
- Underground and above ground electrical cabling
- Suitable for use in switchboards, control panels, and power networks
Standards & Compliance
- Complies with AS/NZS 5000.1 for power cables with extruded insulation and PVC sheath
Environmental Benefits
- XLPE insulation is halogen-free, reducing toxic emissions in case of fire
- Long service life reduces replacement frequency and waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for commercial and industrial power distribution applications.
