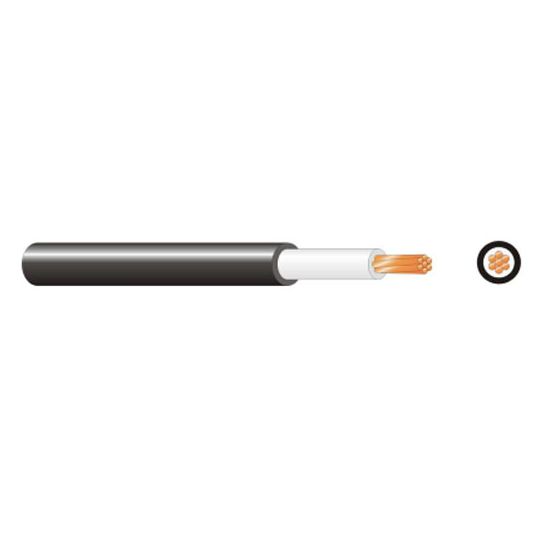

Copper XLPE PVC Circular Cable 240mm | 0.6/1 kV Rated | XLPE Insulation & PVC Sheath | @M of 100 | by Electra Cables
Copper XLPE PVC Circular Cable 240mm is designed for reliable power distribution with a 0.6/1 kV rating. Featuring high conductivity plain annealed copper and superior XLPE insulation, this single core cable is perfect for both underground and above ground installations. Ideal for commercial and industrial applications, it ensures efficient power transmission and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper XLPE PVC Circular Cable 240mm | 0.6/1 kV Rated | XLPE Insulation & PVC Sheath | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: XLPE12400-100BK
Alternatively Known As: 240mm XLPE Cable, 240mm Single Core Power Cable, 240mm Copper Cable, XLPE12400-100BK
Technical Specifications
- Conductor: Plain annealed copper, circular stranded
- Cross-sectional area: 240mm²
- Insulation: XLPE (Cross-linked Polyethylene)
- Sheath: PVC (Polyvinyl Chloride)
- Rated voltage: 0.6/1kV
- Operating temperature: -15°C to +90°C
- Core: Single core
- Colour: Black
- Compliance: AS/NZS 5000.1
- Dimensions (H x L x W): 32mm x 1000mm x 32mm
- Weight: 2.5 kg
Key Features
- High conductivity plain annealed copper conductor
- XLPE insulation for superior electrical and thermal performance
- Durable PVC sheath for mechanical protection and chemical resistance
- Single core, circular stranded design for flexibility and ease of installation
- Rated voltage: 0.6/1kV
Professional Installation Requirements
- Installation must be carried out by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Power distribution in commercial and industrial installations
- Underground and above ground electrical installations
- Suitable for use in switchboards, control panels, and power networks
Standards & Compliance
- Complies with AS/NZS 5000.1 for power cables with extruded insulation and PVC sheath
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces replacement frequency and waste
- Low smoke, halogen-free insulation options available for reduced environmental impact
- Efficient power transmission minimizes energy loss
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for commercial and industrial power distribution, switchboards, and underground installations.
