Copper XLPE PVC Circular Cable | 300mm² Single Core | 0.6/1 kV Rated | PVC Sheath | @M of 100 | by Electra Cables

BRAND: Electra Cables
SKU: XLPE13000-100BK
$8,492.18 List price: $11,259.72
+ −
30 Days Return Electricians Unlock Trade Access

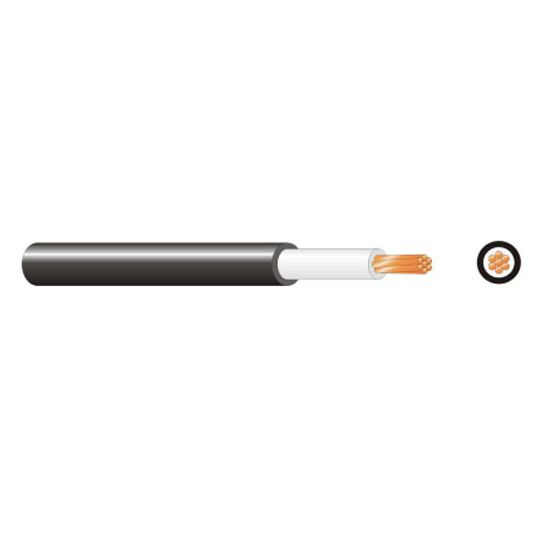

Copper XLPE PVC Circular Cable is designed for reliable power distribution, featuring a 300mm² single core conductor with XLPE insulation and a durable PVC sheath. Rated for 0.6/1 kV, this cable is perfect for commercial and industrial applications, ensuring high conductivity and mechanical protection. Ideal for underground and above-ground installations, it meets AS/NZS standards for safety and performance.

Product Name/Title: Copper XLPE PVC Circular Cable | 300mm² Single Core | 0.6/1 kV Rated | PVC Sheath | @M of 100 | by Electra Cables

Brand: Electra Cables

SKU: XLPE13000-100BK

Alternatively Known As: 300mm XLPE Cable, 300mm Single Core Power Cable, 300mm Copper Power Cable, XLPE13000-100BK

Technical Specifications
  • Conductor: Plain annealed copper, circular stranded
  • Cross-sectional area: 300mm²
  • Insulation: XLPE (Cross-linked Polyethylene)
  • Sheath: PVC (Polyvinyl Chloride), black
  • Rated voltage: 0.6/1 kV
  • Operating temperature: -15°C to +90°C
  • Standards: AS/NZS 5000.1
  • Flame retardant and UV resistant
  • Dimensions (H x L x W): 32mm x 1000mm x 32mm
  • Weight: 1.2 kg
Key Features
  • Single core copper conductor for high conductivity
  • XLPE insulation for superior electrical and thermal performance
  • PVC sheath for enhanced mechanical protection and chemical resistance
  • Rated voltage: 0.6/1 kV
  • Circular cable design for easy installation
Professional Installation Requirements
  • Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules and local regulations.
Applications
  • Power distribution in commercial and industrial installations
  • Underground and above ground electrical cabling
  • Suitable for use in switchboards, control panels, and power networks
Standards & Compliance
  • Complies with AS/NZS 5000.1 for power cables with extruded insulation and PVC sheath
Environmental Benefits
  • XLPE insulation is halogen-free, reducing toxic emissions in case of fire
  • Durable construction extends cable lifespan, reducing replacement frequency
Warranty Information

12 months warranty against manufacturing defects.

Available Now

Available for immediate purchase. Ideal for commercial and industrial power distribution, switchboards, and underground cabling.
