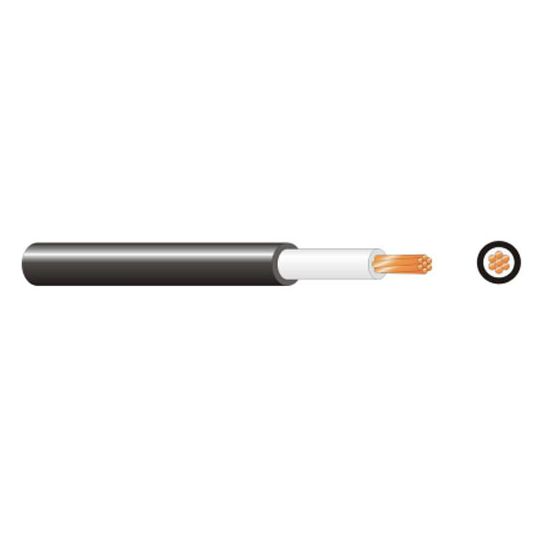

Copper XLPE PVC Circular Cable 35mm | 0.6/1 kV Rated | UV Resistant | @M of 100 | by Electra Cables
Copper XLPE PVC Circular Cable 35mm is designed for high conductivity and durability, featuring a 0.6/1 kV rated voltage and UV-resistant PVC sheath. Ideal for power distribution in commercial and industrial settings, this cable ensures superior electrical performance and is perfect for underground installations when used in conduit.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper XLPE PVC Circular Cable 35mm | 0.6/1 kV Rated | UV Resistant | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: XLPE1350-100BLK
Alternatively Known As: 35mm XLPE Cable, 35mm Single Core Power Cable, 35mm Copper Cable, XLPE1350-100BLK, 35mm² Electrical Cable
Technical Specifications
- Conductor: Plain annealed copper, circular stranded
- Cross-sectional area: 35mm²
- Insulation: XLPE (Cross-linked Polyethylene)
- Sheath: PVC (Polyvinyl Chloride), black
- Rated voltage: 0.6/1kV
- Operating temperature: -15°C to +90°C
- Maximum conductor temperature: 90°C
- UV resistant sheath
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 16mm x 100000mm x 16mm
- Weight: 1.5 kg
Key Features
- 35mm² single core copper conductor for high conductivity
- XLPE insulation for superior electrical and thermal performance
- PVC sheath for enhanced mechanical protection and durability
- Rated voltage: 0.6/1kV
- Circular cable design for easy installation
- UV and moisture resistant sheath
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules and local regulations.
Applications
- Power distribution in commercial and industrial installations
- Suitable for fixed wiring in switchboards and control panels
- Ideal for underground installations when installed in conduit
- General electrical installations requiring high current capacity
Standards & Compliance
- Complies with AS/NZS 5000.1 for power cables with extruded insulation and PVC sheath
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- XLPE insulation is halogen-free, reducing toxic emissions in case of fire
- Durable construction extends cable lifespan, reducing replacement frequency
- PVC sheath is recyclable
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
Available for immediate purchase. Ideal for commercial, industrial, and infrastructure electrical installations requiring robust and reliable power cabling.
