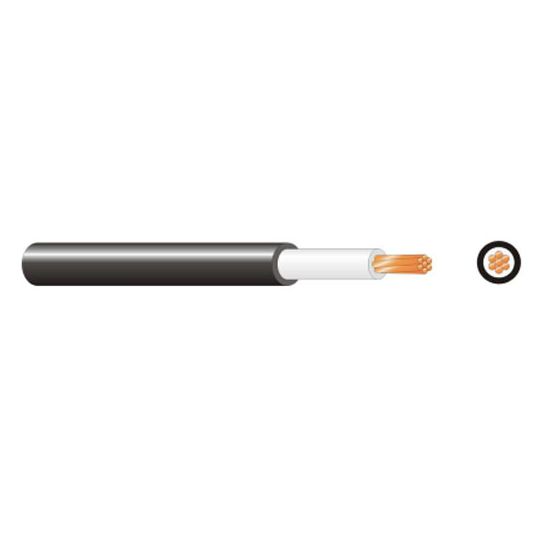

Copper XLPE PVC Circular Cable 50mm | 0.6/1 kV Rated | UV & Moisture Resistant | @M of 100 | by Electra Cables
Copper XLPE PVC Circular Cable 50mm is designed for reliable power distribution with a voltage rating of 0.6/1 kV. Featuring high conductivity plain annealed copper and durable XLPE insulation, this single core cable is perfect for both indoor and outdoor applications. Its UV and moisture-resistant PVC sheath ensures long-lasting performance, making it ideal for commercial and industrial installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper XLPE PVC Circular Cable 50mm | 0.6/1 kV Rated | UV & Moisture Resistant | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: XLPE1500-100BLK
Alternatively Known As: 50mm XLPE Cable, 50mm Single Core Power Cable, 50mm² Copper Cable, XLPE1500-100BLK, 50mm Electrical Cable
Technical Specifications
- Conductor: Plain annealed copper, circular, 50mm²
- Insulation: Cross-linked polyethylene (XLPE)
- Sheath: Polyvinyl chloride (PVC), black
- Voltage rating: 0.6/1kV
- Core: Single core
- Operating temperature: -15°C to +90°C
- UV and moisture resistant
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 18mm x 1000mm x 18mm
- Weight: 2.2 kg
Key Features
- High conductivity plain annealed copper conductor
- XLPE insulation for superior electrical and thermal performance
- Durable PVC sheath for mechanical protection
- Rated voltage: 0.6/1kV
- Single core, circular configuration
- UV and moisture resistant sheath
- Suitable for indoor and outdoor use
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Power distribution in commercial and industrial installations
- Underground and above ground electrical wiring
- Switchboards and control panels
- Suitable for fixed wiring in conduit or cable trays
Standards & Compliance
- Complies with AS/NZS 5000.1 for power cables with extruded insulation and PVC sheath
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces replacement frequency and waste
- Low smoke, halogen-free insulation options available for reduced environmental impact
- Efficient power transmission minimizes energy loss
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for commercial and industrial power distribution, switchboards, and fixed wiring applications.
