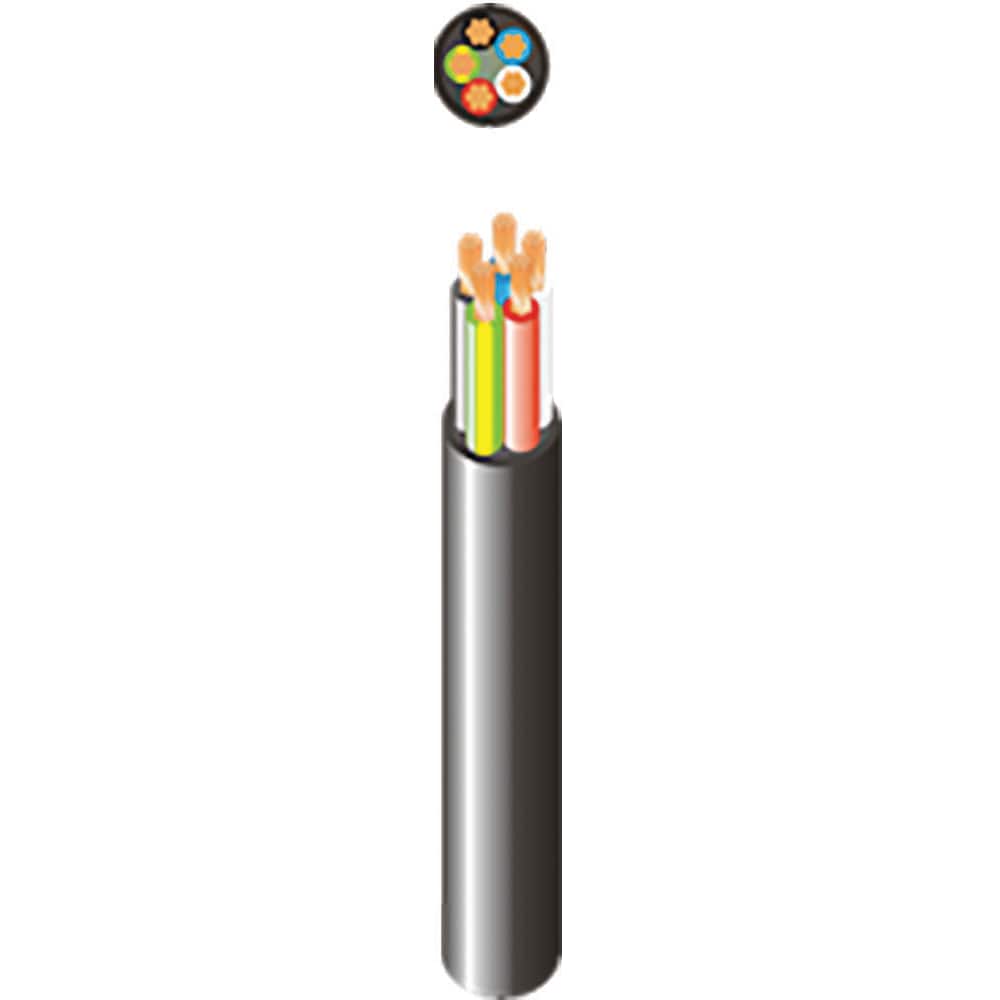

Copper XLPE PVC Circular Cable 50mm | Multicore 0.6/1kV | X-90 Insulation | Durable PVC Sheath | @Pack of 0.10 | by Electra Cables
Copper XLPE PVC Circular Cable 50mm is designed for high current capacity with its 50mm² copper conductor and X-90 insulation. Ideal for power distribution in commercial and industrial settings, this multicore cable ensures reliable performance in fixed wiring applications. With a durable PVC sheath, it offers excellent mechanical protection and chemical resistance, making it suitable for both underground and above-ground installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper XLPE PVC Circular Cable 50mm | Multicore 0.6/1kV | X-90 Insulation | Durable PVC Sheath | @Pack of 0.10 | by Electra Cables
Brand: Electra Cables
SKU: XLPE2500+E-B
Alternatively Known As: 50mm XLPE Cable, 50mm Multicore Power Cable, 0.6/1kV Circular Cable, XLPE2500+E-B, 50mm² Copper Electrical Cable
Technical Specifications
- Conductor: Plain annealed copper, 50mm²
- Insulation: XLPE (Cross-linked Polyethylene) X-90
- Sheath: PVC (Polyvinyl Chloride)
- Voltage Rating: 0.6/1kV
- Configuration: Multicore circular
- Operating Temperature: -25°C to +90°C
- Flame retardant and UV resistant
- Dimensions (H x L x W): 32mm x 1000mm x 32mm
- Weight: 2.5 kg
Key Features
- 50mm² copper conductor for high current capacity
- XLPE (Cross-linked Polyethylene) X-90 insulation for enhanced thermal and electrical performance
- Durable PVC sheath for mechanical protection and chemical resistance
- Multicore design for versatile wiring applications
- Rated for 0.6/1kV voltage applications
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Power distribution in commercial and industrial installations
- Suitable for fixed wiring in buildings and infrastructure
- Ideal for underground and above-ground installations where mechanical protection is required
Standards & Compliance
- Complies with AS/NZS 5000.1 for power cables with extruded insulation and PVC sheath
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low smoke and halogen-free insulation reduces toxic emissions in case of fire
- Long service life reduces replacement frequency and waste
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for commercial and industrial power distribution, fixed wiring, and infrastructure projects.
