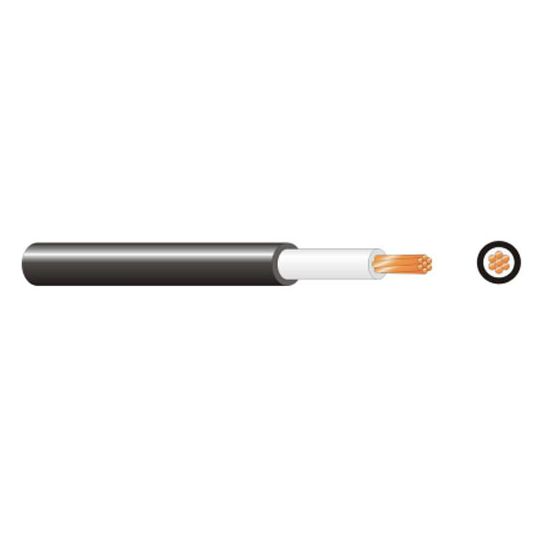

Copper XLPE PVC Circular Cable 6mm | 0.6/1 kV Rated | UV Resistant & Flame Retardant | @M of 100 | by Electra Cables
Copper XLPE PVC Circular Cable 6mm is designed for efficient power distribution with a 0.6/1 kV rating. Featuring a single core copper conductor, XLPE insulation for high temperature resistance, and a durable PVC sheath, this cable is perfect for both indoor and outdoor applications. Ideal for residential, commercial, and industrial wiring, it ensures reliable performance and compliance with AS/NZS standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper XLPE PVC Circular Cable 6mm | 0.6/1 kV Rated | UV Resistant & Flame Retardant | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: XLPE1060-100BLK
Alternatively Known As: 6mm electrical cable, 6mm single core cable, XLPE insulated cable, 6mm power cable, 6mm copper cable
Technical Specifications
- Conductor: Plain annealed copper, single core
- Insulation: Cross-linked polyethylene (XLPE)
- Sheath: Polyvinyl chloride (PVC)
- Nominal Area: 6mm²
- Rated Voltage: 0.6/1 kV
- Maximum Operating Temperature: 90°C
- UV resistant
- Flame retardant
- Complies with AS/NZS 5000.1
- Dimensions (H x L x W): 8mm x 100000mm x 8mm
- Weight: 0.1 kg
Key Features
- Single core copper conductor for efficient electrical conductivity
- XLPE insulation for high temperature and electrical resistance
- PVC sheath for mechanical protection and durability
- Rated voltage: 0.6/1 kV
- UV resistant and flame retardant
- Suitable for indoor and outdoor use
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 Wiring Rules.
Applications
- Power distribution in commercial and industrial installations
- General wiring in switchboards and control panels
- Suitable for fixed wiring in residential, commercial, and industrial environments
Standards & Compliance
- Complies with AS/NZS 5000.1 for power cables with extruded insulation and PVC sheath
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long service life reduces replacement frequency and waste
- Low smoke and halogen-free insulation options available for reduced environmental impact
Warranty Information
12 months warranty against manufacturing defects.
Available Now
Available for immediate purchase. Ideal for power distribution and fixed wiring in residential, commercial, and industrial applications.
