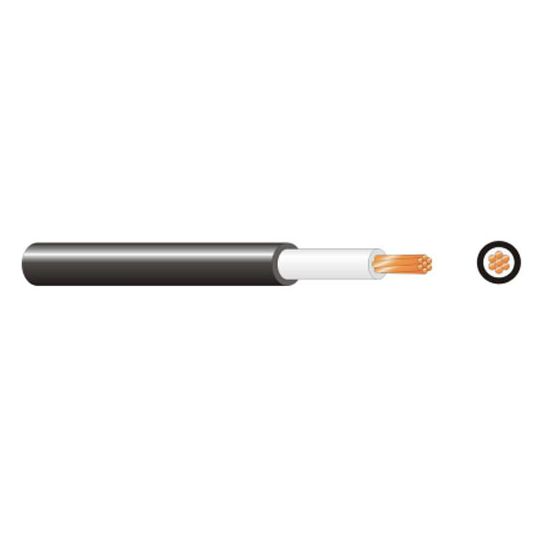

Copper XLPE PVC Circular Cable 70mm | 0.6/1 kV Rated | Durable PVC Sheath | @M of 100 | by Electra Cables
Copper XLPE PVC Circular Cable 70mm is designed for high current capacity with its 70mm² single core copper conductor and 0.6/1 kV voltage rating. Ideal for power distribution in commercial and industrial settings, this cable features superior XLPE insulation for enhanced electrical performance and a durable PVC sheath for mechanical protection. Perfect for underground and above-ground wiring, it meets AS/NZS standards for reliable installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Copper XLPE PVC Circular Cable 70mm | 0.6/1 kV Rated | Durable PVC Sheath | @M of 100 | by Electra Cables
Brand: Electra Cables
SKU: XLPE1700-100BLK
Alternatively Known As: 70mm XLPE Cable, 70mm Single Core Power Cable, 70mm² Copper Cable, XLPE1700-100BLK, 70mm Electrical Cable
Technical Specifications
- Conductor: Plain annealed copper, 70mm²
- Insulation: Cross-linked polyethylene (XLPE)
- Sheath: Polyvinyl chloride (PVC), black
- Voltage Rating: 0.6/1kV
- Core: Single core
- Operating Temperature: -15°C to +90°C
- Standard: AS/NZS 5000.1
- Flame Retardant: Yes
- UV Resistant: Yes
- Dimensions (H x L x W): 18mm x 1000mm x 18mm
- Weight: 2.8 kg
Key Features
- 70mm² single core copper conductor for high current capacity
- XLPE insulation for superior electrical and thermal performance
- Durable PVC sheath for mechanical protection and chemical resistance
- Rated for 0.6/1kV voltage applications
- Circular cable design for easy installation
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000 and local regulations.
Applications
- Power distribution in commercial and industrial installations
- Underground and above ground electrical wiring
- Switchboards and control panels
- Renewable energy systems
- General electrical installations requiring high current capacity
Standards & Compliance
- Complies with AS/NZS 5000.1 for power cables with extruded insulation and PVC sheath
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- XLPE insulation is halogen-free, reducing toxic emissions in case of fire
- Long service life reduces replacement frequency and waste
- Copper conductor is recyclable
Warranty Information
12 months manufacturer's warranty against defects in materials and workmanship.
Available Now
Available for immediate purchase. Ideal for commercial, industrial, and infrastructure electrical installations requiring robust and reliable power distribution.
